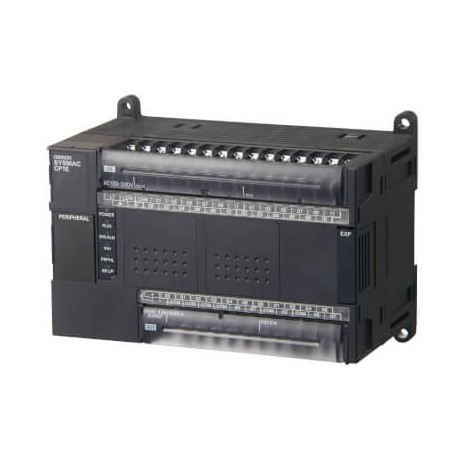

CP1E-E40DR-A 279804 CP1EE40DRA OMRON CPU 24/16 I/O AC Relay Outputs 2K Program, 2K Data
CP1E-E40DR-A
279804
CP1EE40DRA
OMRON
1 Pcs.
Automation > PLC CPU-module
CPM2B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron CPU (CP1E-E40DR-A) functions as the central processing unit for compact control systems, executing ladder logic programs to govern discrete automation tasks. Such controllers interface with sensors, pushbuttons, and relay loads to automate industrial machinery reliably.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage type: AC
- Number of digital inputs: 24
- Input type: PNP/NPN
- Number of digital outputs: 16 ...
More info
▲Specifications
| Supply voltage type | AC |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | Relay |
| Program capacity | 4 K steps |
| Data memory capacity | 4 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CompoBus/S Slave |
| Max. encoder input frequency | 10 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 24 |
| Max. number of local I/O points | 160 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 150 mm |
| Depth | 85 mm |
