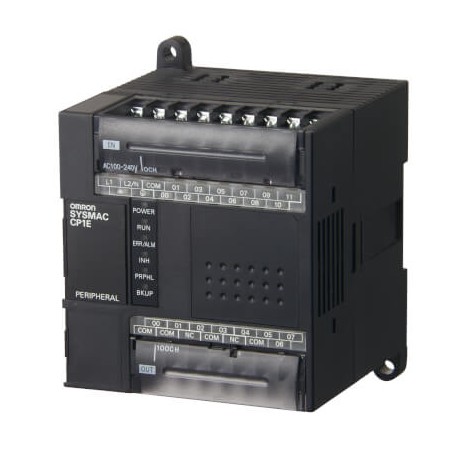

CP1E-E20DR-A 279802 CP1EE20DRA OMRON CPU 12/8 I/O AC Relay Outputs 2K Program, 2K Data
CP1E-E20DR-A
279802
CP1EE20DRA
OMRON
1 Pcs.
Automation > PLC CPU-module
CPM2B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron CP1E-E20DR-A CPU executes programmed logic for small automation tasks, using digital inputs and relay outputs to interface with field devices and actuators. Compact controllers provide dependable automation control for basic machinery, packaging lines, and auxiliary equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage type: AC
- Number of digital inputs: 12
- Input type: PNP/NPN
- Number of digital outputs: 8
- Output type: Relay
- Program capacity: 4 K steps
- Data memory capacity: 4 K words
- Logic execution time: 1.19 µs
- Communication port(s): USB
- Number of Ethernet ports: 0
- Number of USB ports: 1
- Number of RS-232 ports: 0
- Number of RS-485 ports: 0
- Max. encoder input frequency: 10 kHz
- Max. number of PTP axes: 0
- Max. pulse output frequency: 0 kHz
More info
▲Specifications
| Supply voltage type | AC |
| Number of digital inputs | 12 |
| Input type | PNP/NPN |
| Number of digital outputs | 8 |
| Output type | Relay |
| Program capacity | 4 K steps |
| Data memory capacity | 4 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 10 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 0 |
| Max. number of local I/O points | 20 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 85 mm |
