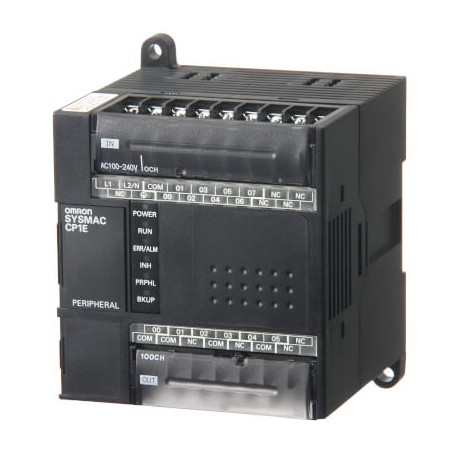

CP1E-E14DR-A 333286 CP1EE14DRA OMRON CPU 8/6 I/O AC Relay Outputs 2K Program, 2K Data
CP1E-E14DR-A
333286
CP1EE14DRA
OMRON
1 Pcs.
Automation > PLC CPU-module
CPM2B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron CP1E-E14DR-A CPU functions as an entry-level programmable controller designed to manage basic automation tasks, small relay configurations, and straightforward logic applications. Micro-controllers of this variety are commonly utilized in simple machine installations and standalone educational or industrial setups to control discrete peripheral components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage type: AC
- Number of digital inputs: 8
- Input type: PNP/NPN
- Number of digital outputs: 6
- Output type: Relay
- Program capacity: 2 K steps
- Data memory capacity: 2 K words
- Logic execution time: 1.19 µs
- Communication port(s): USB
- Number of Ethernet ports: 0
- Number of USB ports: 1
- Number of RS-232 ports: 0
- Number of RS-485 ports: 0
- Max. encoder input frequency: 10 kHz
- Max. number of PTP axes: 0
- Max. pulse output frequency: 0 kHz
More info
▲Specifications
| Supply voltage type | AC |
| Number of digital inputs | 8 |
| Input type | PNP/NPN |
| Number of digital outputs | 6 |
| Output type | Relay |
| Program capacity | 2 K steps |
| Data memory capacity | 2 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 10 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 0 |
| Max. number of local I/O points | 14 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 85 mm |
