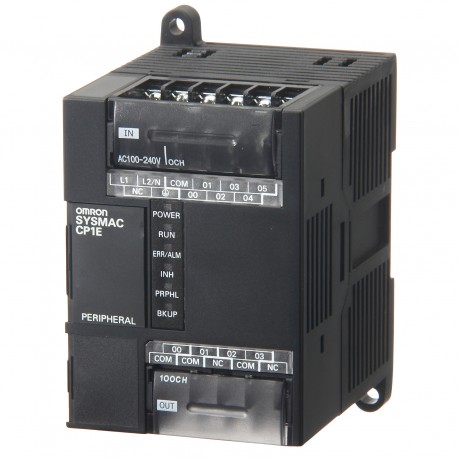

OMRON CP1E-E10DR-A CP1E-E10DR-A CP1W0118M CP1EE10DRA OMRON CPU 6/4 I/O AC Relay Outputs 2K Program, 2K Data View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-E10DR-A CP1W0118M CP1EE10DRA OMRON CPU 6/4 I/O AC Relay Outputs 2K Program, 2K Data

CP1E-E10DR-A

CP1W0118M

CP1EE10DRA

OMRON

1 Pcs.

CPU 6/4 I/O AC Relay Outputs 2K Program, 2K Data PLC, 100-240 VAC supply, 6 x 24 VDC inputs, 4 x relay outputs 2 A, 2K steps program + 2K words data memory

Automation > PLC CPU-module
CPM2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CP1E-E10DR-A compact CPU executes fundamental logic operations and controls timing sequences for small-scale automation installations. These processing units manage basic input and output configurations to automate repetitive mechanical cycles and monitor equipment statuses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Compact
  • Voltage type (supply voltage) (EF002991): AC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Supply voltage typeACNumber of digital inputs6Input typePNP/NPNNumber of digital outputs4Output typeRelayProgram capacity2 K stepsData memory capacity2 K wordsLogic execution time1.19 µsCommunication port(s)USBNumber of Ethernet ports0Number of USB ports1Number of RS-232 ports0Number of RS-485 ports0Communication option(s)NoneMax. encoder input frequency10 kHzMax. number of PTP axes0Max. pulse output frequency0 kHzFunction Block programmingBattery-free memory backupReal-time clockAnalogue option boardsMax. number of analogue I/O channels0Max. number of local I/O points10Max. number of expansion units0Built-in auxiliary 24 VDC output0 mAOperating temperature range0-55 °CProduct Height (unpacked)90 mmProduct Width (unpacked)66 mmProduct Depth (unpacked)85 mmProduct Weight (unpacked)300 g
