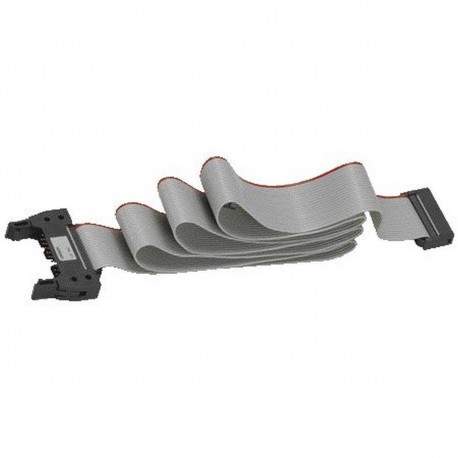

OMRON CP1W-CN811 CP1W-CN811 CP1W0010H CP1WCN811 OMRON Cable I/O Expansion for CP1

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

CP1W-CN811 CP1W0010H CP1WCN811 OMRON Cable I/O Expansion for CP1

Name: CP1W-CN811 CP1W0010H CP1WCN811 OMRON Cable I/O Expansion for CP1
Brand: OMRON
SKU: CP1W0010H

Reference: CP1W-CN811

Code: CP1W0010H

Catalog Number: CP1WCN811

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Cable I/O Expansion for CP1 I/O expansion cable for CP1-series, 80 cm

Categories:
Automation > Accessories/spare parts for controls
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Features

The standalone safety controller

The G9SP safety controller provides all local safety in- and outputs and controls the safety application. Standard in- and outputs can be directly connected and diagnosis information is provided via Serial or Ethernet interface.

Three CPU-types to suit different applications
Clear diagnosis and monitoring via Ethernet or Serial connection
Memory cassette for easy duplication of configuration
Unique programming software to support easy design, verification, standardization and reusage of the program
Certified according to PLe (EN ISO 13849-1) and SIL 3 (IEC 61508)

Ordering information

Appearance	Appearance description	Order code
Standalone safety controller	10 PNP safety inputs 4 PNP safety outputs 4 test outputs 4 PNP standard outputs	G9SP-N10S
	10 PNP safety inputs 16 PNP safety outputs 6 test outputs	G9SP-N10D
	20 PNP safety inputs 8 PNP safety outputs 6 test outputs	G9SP-N20S

Software

Appearance	Media	Applicable OS	Order code
G9SP configurator	Setup disk 1 license	Windows 2000 Windows XP Windows Vista Windows 7	WS02-G9SP01-V1
	Setup disk 10 licenses		WS02-G9SP10-V1
	Setup disk 50 licenses		WS02-G9SP50-V1
	Setup disk Site license		WS02-G9SPXX-V1

Expansion units (standard I/O)

Appearance	Type	Number of I/O		Model
Appearance	Type	In	Out	Model
Expansion I/O unit	Sinking	12	8 (solid state)	CP1W-20EDT
	Sourcing	12	8 (solid state)	CP1W-20EDT1
	Sinking	-	32 (solid state)	CP1W-32ET
	Sourcing	-	32 (solid state)	CP1W-32ET1
I/O Connecting cable, 80 cm long				CP1W-CN811

G9SP configuration

Option units

Appearance	Order code
RS-232 option board	CP1W-CIF01
Ethernet option board (Ver. 2.0 or later)	CP1W-CIF41
Memory cassette	CP1W-ME05M
G9SP Status Display Touchscreen with 1.8 m cable	82614-0010 H-T40M-P
G9SP-N10S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01)	82612-0010 G9SP-N10S-SDK
G9SP-N10D Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01)	82612-0020 G9SP-N10D-SDK
G9SP-N20S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01)	82612-0030 G9SP-N20S-SDK
G9SP-N10S kit with EtherNet/IP module	82608-0010 G9SP-N10S-EIP
G9SP-N10D kit with EtherNet/IP module	82608-0020 G9SP-N10D-EIP
G9SP-N20S kit with EtherNet/IP module	82608-0030 G9SP-N20S-EIP

Specifications

General specifications

Power supply voltage		20.4 to 26.4 VDC (24 VDC -15% +10%)
Consumption current	G9SP-N10S	400 mA (V1: 300 mA, V2: 100 mA)
	G9SP-N10D	500 mA (V1: 300 mA, V2: 200 mA)
	G9SP-N20S	500 mA (V1: 400 mA, V2: 100 mA)
Mounting method		35-mm DIN track
Ambient operating temperature		0°C to 55°C
Ambient storage temperature		-20°C to 75°C
Degree of protection		IP20 (IEC 60529)

Safety input specifications

Input type		Sinking inputs (PNP)
ON voltage		11 VDC min. between each input terminal and G1
OFF voltage		5 VDC max. between each input terminal and G1
OFF current		1 mA max.
Input current		6 mA

Safety output specifications

Output type		Sourcing outputs (PNP)
Rated output current		0.8 A max. per output*
Residual voltage		1.2 V max. between each output terminal and V2

Test output specifications

Output type		Sourcing outputs (PNP)
Rated output current		0.3 A max. per output*
Residual voltage		1.2 V max. between each output terminal and V1

Standard output specifications (G9SP-N10S)

Output type		Sourcing outputs (PNP)
ON Residual voltage		1.5 V max. (between each output terminal and V2)
Rated output current		100 mA max.*

*For details on the rated output current, please refer to the user manual of G9SP.

G9SP configuration tool

ETIM for 209406 PLC's (EC002584)
Feature Name	Feature Value
Type of mechanical accessory/spare part (EF005994)	Other
Type of electrical accessory/spare part (EF005722)	Connecting cable
Accessory (EF013236)	Yes
Spare part (EF013237)	No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.

View PDF Download
