E69-C10M E69 1019E E69C10M OMRON Coupling encoder Metalic D10mm
E69-C10M
E69 1019E
E69C10M
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

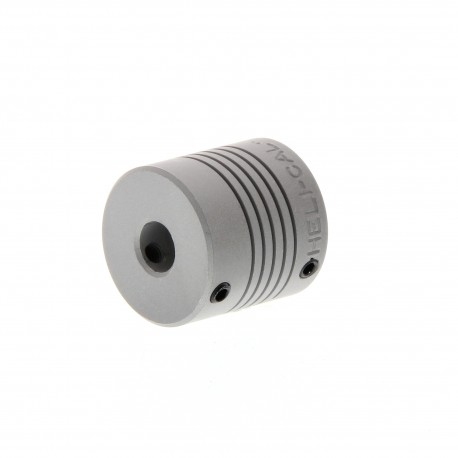

Omron E69-C10M metallic D10mm encoder coupling functions as a mechanical connection component designed to link rotary shafts to encoders securely. This hardware element transmits rotational motion with minimal backlash while compensating for minor shaft misalignments within industrial motion feedback assemblies. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Accessory (EF013236): Yes
- Spare part (EF013237): No
More info
▲Absolute 60-mm-dia. Rotary Encoder
E6F-A
.
High Accuracy and Durability for Automatic Equipment
• Stronger shaft and greater durability (120 N in the ra- dial direction and 50 N in the thrust direction) than previous E6F Encoders.
• Water- and oil-proof structure (IP65f) for a greater de- gree of protection against water, oil, and other sub- stances.
• Wider range of resolutions for even more applications
(series includes models with resolutions up to 1,024).
• Faster response for high-speed control applications
(grey code: 20 kHz).
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or comments.
Ordering Information
■ Rotary Encoders
Supply voltage Output configuration Output codeResolution (P/R) Connection Model
5 to 12 VDCNPN open collectorBCD 360PrewiredE6F-AB3C Connector E6F-AB3C-C
12 to 24 VDCPrewiredE6F-AB5C Connector E6F-AB5C-C
PNP open collectorPrewiredE6F-AB5B NPN open collectorGrey binary256Connector E6F-AG5C-C
256, 360, 720, or 1,024 PrewiredE6F-AG5C PNP open collector E6F-AG5B
Note 1. When ordering, specify the resolution together with the model number (e.g., F6F-AG5C 256).
2. The E6F-AB3C-C connects to the H8PR-8, H8PR-16, or H8PR-24 Rotary Positioner.
3. The E6F-AG5C-C connects to the H8PS-8A or H8PS-8AF Cam Positioner.
■ Accessories (Order Separately)
NameModel Remarks
CouplingE69-C10B Included with the E6F-AB3C.
E69-C610B Different end diameter
E69-C10MMetal construction
Servo Mounting BracketsE69-2Three brackets in a set included with the Encoder. Extension CableE69-DF5 5 m
(10-, 15-, 20-, and 98-m cables are also available.)
E6F-A Absolute 60-mm-dia. Rotary Encoder1
