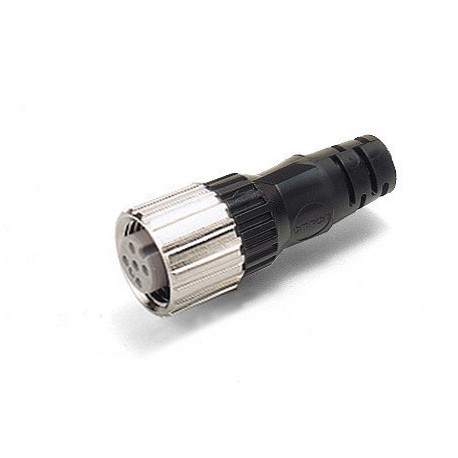

OMRON DRS2-2 DRS2-2 DRS20002F DRS22 OMRON Connector Resistance Order Line IP67 Female View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRS2-2 DRS20002F DRS22 OMRON Connector Resistance Order Line IP67 Female

DRS2-2

DRS20002F

DRS22

OMRON

1 Pcs.

Connector Resistance Order Line IP67 Female End Line Resistance Connector IP67 Female DeviceNet IP67 terminating resistor (female M12)

Automation > Accessories/spare parts for controls
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Connector Resistance Order Line IP67 Female by Omron (DRS2-2 DRS20002F DRS22) ensures reliable signal continuity and environmental protection in decentralized machine architectures. Ruggedized industrial connectors safeguard network and power interfaces against fluid ingress, dust, and mechanical vibration. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 4-point PNP input unit: 24 V, 6 mA
  • 8-point PNP input unit: 24 V, 6 mA
  • 8-point PNP input unit: 24 V, 11 mA, with power short-circuit and sensor disconnection detection
  • 16-point PNP input unit: 24 V, 6 mA, 2 inputs per M12 connector
  • 4-point PNP output unit: 24 V, 0.5 A per point
  • 8-point PNP output unit: 24 V, 0.5 A per point
  • 8-point PNP output unit: 24 V, 1.5 A per point (8 A total), with short-circuit protection + indication
  • 16-point PNP output unit: 24 V, 0.5 A per point, 2 points per M12 connector
  • 8-point input + 8-point PNP output unit: 24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector
  • DeviceNet thin cable: with one M12 socket connector (female), 1 m
  • DeviceNet thin cable: with one M12 socket connector (female), 2 m
  • DeviceNet thin cable: with one M12 socket connector (female), 5 m
  • DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 1 m
  • DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 2 m
  • DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 5 m
  • DeviceNet T-connector for thin cable: with two M12 socket connectors (female) + one M12 plug connector (male)

More info

▲
  • IP67 protection, DRT2 versions are also oil- and welding-spatter proof
  • Internal circuits powered by DeviceNet; fewer connections means less installation errors
  • Smart Slave functions for diagnostics and preventive maintenance
  • Indication of broken wire and short-circuit in I/O signals
  • M12 connectors for fast installation

Specifications & ordering info

Ordering information

Unit type

Specifications

Size in mm (H×W×D)

Remarks

Order code

4-point PNP input unit

24 V, 6 mA

123×60×44

Separate I/O power supply connection

DRT2-ID04CL-1

8-point PNP input unit

24 V, 6 mA

175×60×44

Separate I/O power supply connection

DRT2-ID08CL-1

8-point PNP input unit

24 V, 11 mA, with power short-circuit and sensor disconnection detection

175×60×38

Unit power supply via DeviceNet cable

DRT2-ID08C-1

16-point PNP input unit

24 V, 6 mA, 2 inputs per M12 connector

175×60×44

Separate I/O power supply connection

DRT2-HD16CL-1

16-point PNP input unit

24 V, 11 mA, 2 inputs per M12 connector,
with power short-circuit and sensor disconnection detection

175×60×38

Unit power supply via DeviceNet cable

DRT2-HD16C-1

4-point PNP output unit

24 V, 0.5 A per point

123×60×44

Separate I/O power supply connection

DRT2-OD04CL-1

8-point PNP output unit

24 V, 0.5 A per point

175×60×44

Separate I/O power supply connection

DRT2-OD08CL-1

8-point PNP output unit

24 V, 1.5 A per point (8 A total), with short-circuit protection + indication

175×60×44

Separate I/O power supply connection

DRT2-OD08C-1

16-point PNP output unit

24 V, 0.5 A per point, 2 points per M12 connector

175×60×44

Separate I/O power supply connection

DRT2-WD16CL-1

8-point input + 8-point PNP output unit

24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector

175×60×44

Separate I/O power supply connection

DRT2-MD16CL-1

Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.

Accessories

Unit type

Specifications

Order code

DeviceNet thin cable

with one M12 socket connector (female), 1 m

DCA1-5CN01F1

DeviceNet thin cable

with one M12 socket connector (female), 2 m

DCA1-5CN02F1

DeviceNet thin cable

with one M12 socket connector (female), 5 m

DCA1-5CN05F1

DeviceNet thin cable

with one M12 socket connector (female) and one M12 plug connector (male), 1 m

DCA1-5CN01W1

DeviceNet thin cable

with one M12 socket connector (female) and one M12 plug connector (male), 2 m

DCA1-5CN02W1

DeviceNet thin cable

with one M12 socket connector (female) and one M12 plug connector (male), 5 m

DCA1-5CN05W1

DeviceNet T-connector for thin cable

with two M12 socket connectors (female) + one M12 plug connector (male)

DCN2-1

DeviceNet terminator

with M12 plug connector

DRS2-1

Power supply cable

with one 7/8 inches socket connector (female), 2 m

XS4F-D421-102-A

Power supply cable

with one 7/8 inches socket connector (female), 5 m

XS4F-D421-105-A

Power supply cable

with one 7/8 inches socket connector (female) and one 7/8 inches plug connector (male), 2 m

XS4W-D421-102-A

Power supply cable

with one 7/8 inches socket connector (female) and one 7/8 inches plug connector (male), 5 m

XS4W-D421-105-A

Power supply T-connector

with two 7/8 inches socket connectors (female) + one 7/8 inches plug connector (male)

XS4R-D424-5

4-wire I/O connection cable

with one M12 plug connector (male), 1 m

XS2H-D421-C80-A

4-wire I/O connection cable

with one M12 plug connector (male), 2 m

XS2H-D421-D80-A

4-wire I/O connection cable

with one M12 plug connector (male), 5 m

XS2H-D421-G80-A

4-wire I/O connection cable

with one M12 socket connector (female) and one M12 plug connector (male), 1 m

XS2W-D421-C81-A

4-wire I/O connection cable

with one M12 socket connector (female) and one M12 plug connector (male), 2 m

XS2W-D421-D81-A

4-wire I/O connection cable

with one M12 socket connector (female) and one M12 plug connector (male), 5 m

XS2W-D421-G81-A

Y-connector for 16-point I/O units

Splits the 2 I/O points per M12 connector to two M12 connectors

XS2R-D426-1

Y-connector cable for 16-point I/O units

Splits the 2 I/O points per M12 connector to two M12 connectors, 1 m

XS2R-D426-C11-F

M12 connector

M12 plug connector (male), solder type

XS2G-D421

M12 connector

M12 socket connector (female), solder type

XS2C-D421

IP67 cap for M12 sockets

Metal cap for unused I/O connections

XS2Z-12
