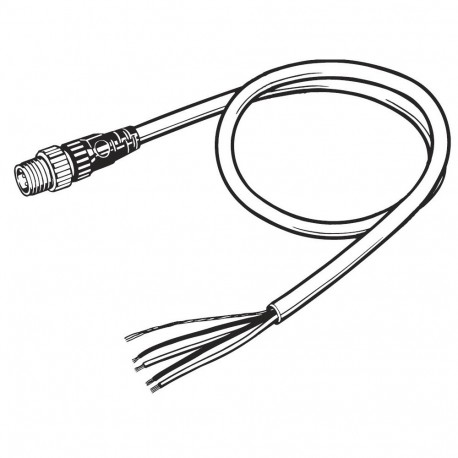

DCA1-5CN05H1 DCA10007M DCA15CN05H1 OMRON Cable IP67 5m Male Connector and tips
DCA1-5CN05H1
DCA10007M
DCA15CN05H1
OMRON
1 Pcs.
Automation > Telecommunications patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron DCA1-5CN05H1 Cable is a robust industrial connection lead utilized to interface decentralized sensors, actuators, and network nodes within automated machinery. Such cordsets protect signal paths from harsh factory conditions while maintaining stable communication channels.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- 4-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 11 mA, with power short-circuit and sensor disconnection detection
- 16-point PNP input unit: 24 V, 6 mA, 2 inputs per M12 connector
- 4-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 1.5 A per point (8 A total), with short-circuit protection + indication
- 16-point PNP output unit: 24 V, 0.5 A per point, 2 points per M12 connector
- 8-point input + 8-point PNP output unit: 24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector
- DeviceNet thin cable: with one M12 socket connector (female), 1 m
- DeviceNet thin cable: with one M12 socket connector (female), 2 m
- DeviceNet thin cable: with one M12 socket connector (female), 5 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 1 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 2 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 5 m
- DeviceNet T-connector for thin cable: with two M12 socket connectors (female) + one M12 plug connector (male)
More info
▲- IP67 protection, DRT2 versions are also oil- and welding-spatter proof
- Internal circuits powered by DeviceNet; fewer connections means less installation errors
- Smart Slave functions for diagnostics and preventive maintenance
- Indication of broken wire and short-circuit in I/O signals
- M12 connectors for fast installation
Specifications & ordering info
Ordering information
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
