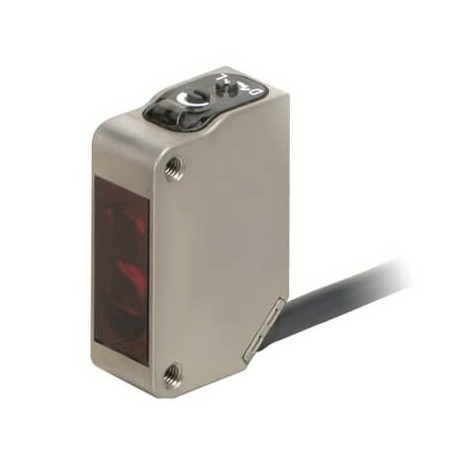

OMRON E3ZM-R81 2M E3ZM-R81 2M E3ZM0019C E3ZMR812M OMRON Metal cc 3h Mirror 4m PNP Cable 2M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-R81 2M E3ZM0019C E3ZMR812M OMRON Metal cc 3h Mirror 4m PNP Cable 2M

E3ZM-R81 2M

E3ZM0019C

E3ZMR812M

OMRON

1 Pcs.

Metal cc 3h Mirror 4m PNP Cable 2M Photoelectric sensor, rectangular housing, stainless steel, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron metal housing retro-reflective sensor, part number E3ZM-R81 2M, serves as a non-contact detection device commonly deployed in material handling and packaging machinery to track items along a processing path. These sensors provide reliable object recognition using polarized light beams in demanding factory floor applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance4000 mmSensing distance (min.)100 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)32.2 mmProduct Depth (unpacked)21 mmType of lightPolarized red lightPower supply voltage10-30 VFeaturesM.S.R.Degree of protection (IP)IP67/IP69K
