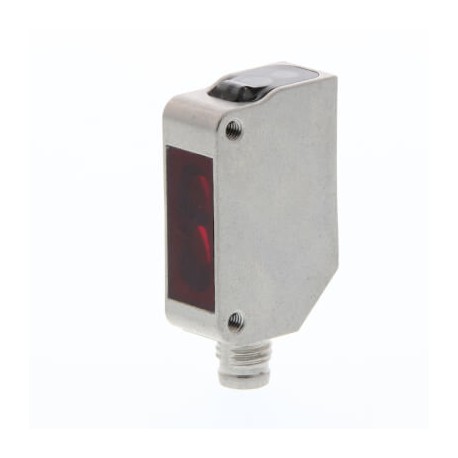

OMRON E3ZM-LS86H E3ZM-LS86H E3ZM0014B E3ZMLS86H OMRON Metal BGS cc 4h 10cm, PNP, M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-LS86H E3ZM0014B E3ZMLS86H OMRON Metal BGS cc 4h 10cm, PNP, M8

E3ZM-LS86H

E3ZM0014B

E3ZMLS86H

OMRON

1 Pcs.

Metal BGS cc 4h 10cm, PNP, M8 Photoelectric sensor, rectangular housing, stainless steel, red LED, background suppression, 100 mm, PNP, Light-ON/Dark-ON, M8 4-pin connector

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number E3ZM-LS86H is a metal-housed background suppression photoelectric sensor used to detect objects reliably regardless of color or surface variations in industrial machinery. Such sensors are frequently installed in automated handling equipment to maintain consistent tracking and positioning control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarized red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance100 mmSensing distance (min.)10 mmSetting methodFixedConnection methodConnector M8 - 4 pinOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)32.2 mmProduct Depth (unpacked)21 mmType of lightPolarity free red lightSpot size4 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K
