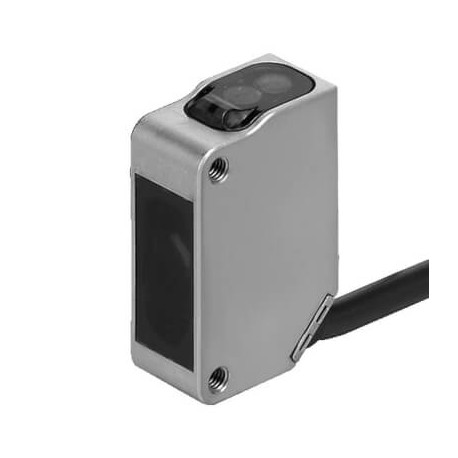

OMRON E3ZM-LS81H 2M E3ZM-LS81H 2M E3ZM0011H E3ZMLS81H2M OMRON Metal BGS cc 4h 10cm, PNP, Cable 2M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-LS81H 2M E3ZM0011H E3ZMLS81H2M OMRON Metal BGS cc 4h 10cm, PNP, Cable 2M

E3ZM-LS81H 2M

E3ZM0011H

E3ZMLS81H2M

OMRON

1 Pcs.

Metal BGS cc 4h 10cm, PNP, Cable 2M Photoelectric sensor, rectangular housing, stainless steel, red LED, background suppression, 100 mm, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metal BGS cc 4h 10cm, PNP, Cable 2M unit, cataloged as the Omron E3ZM-LS81H 2M, serves as a photoelectric sensor utilizing background suppression technology to reliably detect targets in industrial automation applications. Technicians deploy these sensors in tight machinery spaces where distinguishing between a target object and a reflective or complex background is essential for process continuity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarized red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance100 mmSensing distance (min.)10 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)32.2 mmProduct Depth (unpacked)21 mmType of lightPolarity free red lightSpot size4 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K
