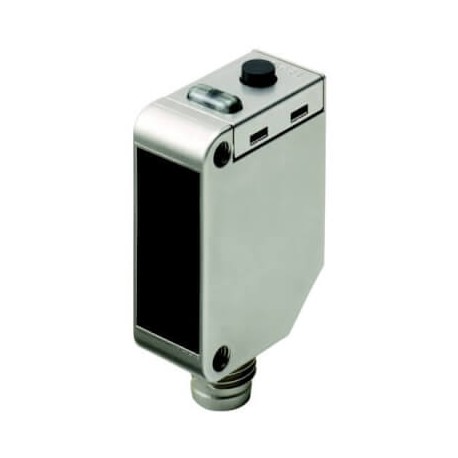

OMRON E3ZM-B86 E3ZM-B86 E3ZM7225R E3ZMB86OMS OMRON Metalica Obj. Transp. Teach cc 3h Mirror 0.5 m PNP M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-B86 E3ZM7225R E3ZMB86OMS OMRON Metalica Obj. Transp. Teach cc 3h Mirror 0.5 m PNP M8

E3ZM-B86

E3ZM7225R

E3ZMB86OMS

OMRON

1 Pcs.

Metalica Obj. Transp. Teach cc 3h Mirror 0.5 m PNP M8 Photoelectric sensor, rectangular housing, stainless steel, red LED, retro-reflective, transparent object, 500 mm, with teach-button, PNP, Light-ON/Da

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron metal-housed photoelectric sensor, part number E3ZM-B86, provides dependable detection capabilities for clear and transparent materials in high-speed industrial manufacturing equipment. This sensing device helps maintain precise quality control and item tracking across automated production zones.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance500 mmSensing distance (min.)100 mmSetting methodTeach-InConnection methodConnector M8 - 4 pinOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)21 mmType of lightPolarized red lightPower supply voltage10-30 VFeaturesM.S.R., Transparent detection (PET bottle and tray)Degree of protection (IP)IP67/IP69K
