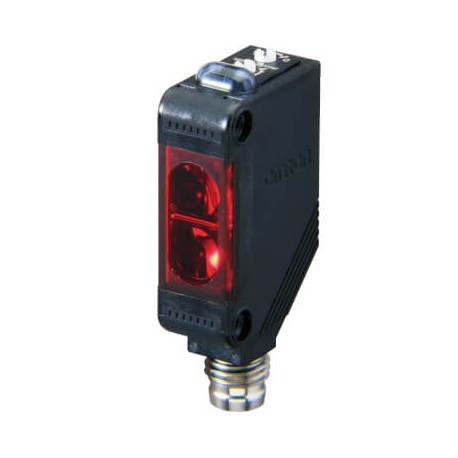

OMRON E3Z-R86-4 E3Z-R86-4 E3Z 7537C E3ZR864OMS OMRON Ecological cc 3h Mirror 4m, PNP, M8. Not polarized View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-R86-4 E3Z 7537C E3ZR864OMS OMRON Ecological cc 3h Mirror 4m, PNP, M8. Not polarized

E3Z-R86-4

E3Z 7537C

E3ZR864OMS

OMRON

1 Pcs.

Ecological cc 3h Mirror 4m, PNP, M8. Not polarized Photoelectric sensor, rectangular housing, infrared LED, retro-reflective, without MSR function, 5 m, PNP, Light-ON/Dark-ON, M8 4-pin connector Photoelectric sensor, retro-reflective, compact square, infrared LED, 5m, PNP, L-on/D-on selectable, M8-4pin connector

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3Z-R86-4 retro-reflective photoelectric sensor provides high-performance optical detection for automated sorting, conveyor systems, and packaging lines. Retro-reflective units project light to a reflector and detect objects when the return beam is broken, offering dependable operation across extended sensing ranges. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: Cuboid
  • Sensing method: Retro-reflective
  • Sensing distance: 5000 mm
  • Sensing distance (min.): 100 mm
  • Setting method: Manual adjustment
  • Connection method: Connector M8 - 4 pin
  • Output type: PNP
  • Operation mode: Dark-ON, Light-ON
  • Response time: 1 ms
  • Material housing: PBT
  • Type of light: Infrared light
  • Power supply voltage: 12-24 V
  • Features: Without M.S.R.

More info

▲

Specifications

ShapeCuboid
Sensing methodRetro-reflective
Sensing distance5000 mm
Sensing distance (min.)100 mm
Setting methodManual adjustment
Connection methodConnector M8 - 4 pin
Output typePNP
Operation modeDark-ON, Light-ON
Response time1 ms
Material housingPBT
Thread sizeOther
Type of lightInfrared light
Power supply voltage12-24 V
FeaturesWithout M.S.R.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
