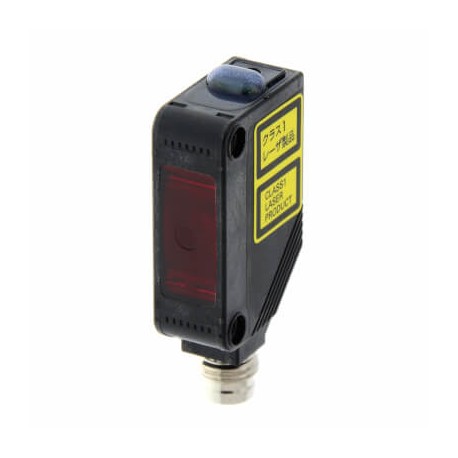

OMRON E3Z-LT86-L E3Z-LT86-L E3Z 7445H E3ZLT86LOMS OMRON Laser-cc 3h Barrier 60m PNP M8 Transmitter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LT86-L E3Z 7445H E3ZLT86LOMS OMRON Laser-cc 3h Barrier 60m PNP M8 Transmitter

E3Z-LT86-L

E3Z 7445H

E3ZLT86LOMS

OMRON

1 Pcs.

Laser-cc 3h Barrier 60m PNP M8 Transmitter Photoelectric sensor, rectangular housing, red laser class 1, through-beam, emitter unit, PNP, Light-ON/Dark-ON, M8 4-pin connector Photoelectric sensor, through-beam laser emitter, 60m, M8 4-pin connector

Automation > Through beam photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3Z-LT86-L laser transmitter functions as a high-precision optical emitter designed to project a focused beam over long industrial distances. Automated material handling lines utilize these laser units to maintain accurate positioning and reliable object tracking in harsh environments. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Shape: Cuboid
  • Sensing method: Through-beam
  • Sensing distance: 60000 mm
  • Setting method: Manual adjustment
  • Connection method: Connector M8 - 4 pin
  • Output type: PNP
  • Operation mode: Dark-ON, Light-ON
  • Response time: 1 ms
  • Material housing: PBT
  • Type of light: Laser diode, red light
  • Laser class: 1
  • Spot size: 5 mm
  • Power supply voltage: 12-24 V

More info

▲

Specifications

ShapeCuboid
Sensing methodThrough-beam
Sensing distance60000 mm
Setting methodManual adjustment
Connection methodConnector M8 - 4 pin
Output typePNP
Operation modeDark-ON, Light-ON
Response time1 ms
Material housingPBT
Thread sizeOther
Type of lightLaser diode, red light
Laser class1
Spot size5 mm
Power supply voltage12-24 V
