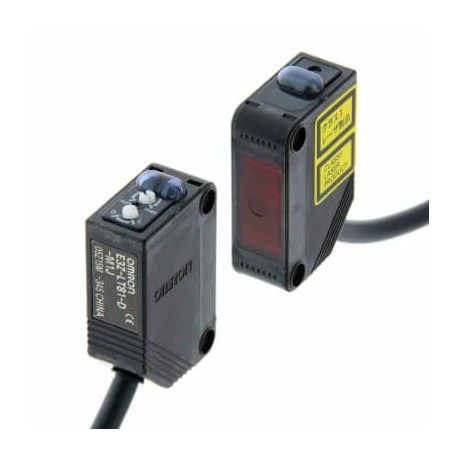

OMRON E3Z-LT81 2M E3Z-LT81 2M E3Z 7423G E3ZLT812MOMS OMRON Laser-cc 3h Barrier 60m PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LT81 2M E3Z 7423G E3ZLT812MOMS OMRON Laser-cc 3h Barrier 60m PNP

E3Z-LT81 2M

E3Z 7423G

E3ZLT812MOMS

OMRON

1 Pcs.

Laser-cc 3h Barrier 60m PNP Photoelectric sensor, rectangular housing, red laser class 1, through-beam, 60 m, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Through beam photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

E3Z-LT81 2M E3Z 7423G E3ZLT812MOMS OMRON Laser-cc 3h Barrier 60m PNP acts as an Omron laser photoelectric sensor engineered for high-precision distance and presence sensing. Facilities utilize laser-based barriers for exact positioning tasks, long-range object detection, and high-speed sorting applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Laser diode, red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No

More info

▲
ShapeCuboidSensing methodThrough-beamSensing distance60000 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightLaser diode, red lightLaser class1Spot size5 mmPower supply voltage12-24 VDegree of protection (IP)IP67
