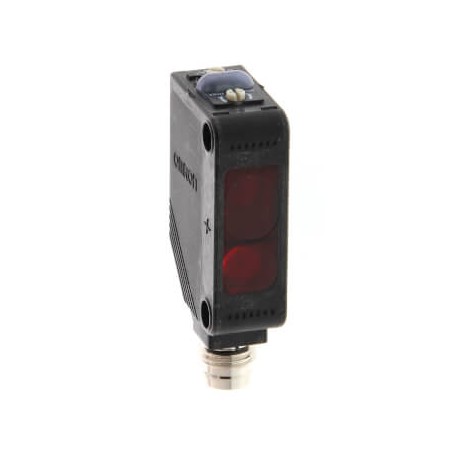

OMRON E3Z-LS68 E3Z-LS68 E3Z 7597G E3ZLS68OMS OMRON BGS cc 4h Slr 80mm NPN M8 IP67 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LS68 E3Z 7597G E3ZLS68OMS OMRON BGS cc 4h Slr 80mm NPN M8 IP67

E3Z-LS68

E3Z 7597G

E3ZLS68OMS

OMRON

1 Pcs.

BGS cc 4h Slr 80mm NPN M8 IP67 Photoelectric sensor, rectangular housing, red LED, background suppression, 80 mm, NPN, Light-ON/Dark-ON, M8 4-pin connector

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped with background suppression technology, this Omron photoelectric sensor (E3Z-LS68) reliably detects objects while ignoring disruptive background reflections in automated control systems. Photoelectric sensors are widely deployed throughout factory automation applications to track product flow, verify component presence, and synchronize operational sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance80 mmSensing distance (min.)2 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightPolarity free red lightPower supply voltage12-24 VDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
