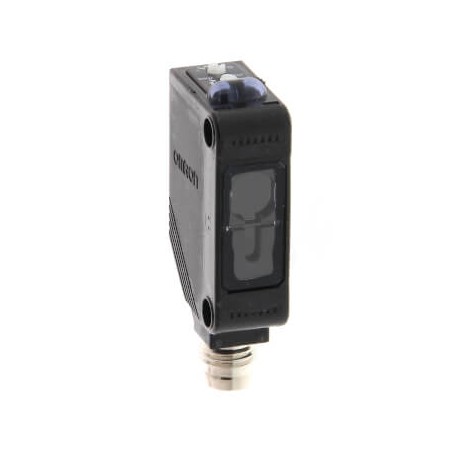

OMRON E3Z-LR86 E3Z-LR86 E3Z 7420B E3ZLR86OMS OMRON Laser-cc 3h Mirror MSR 15m PNP M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LR86 E3Z 7420B E3ZLR86OMS OMRON Laser-cc 3h Mirror MSR 15m PNP M8

E3Z-LR86

E3Z 7420B

E3ZLR86OMS

OMRON

1 Pcs.

Laser-cc 3h Mirror MSR 15m PNP M8 Photoelectric sensor, rectangular housing, red laser class 1, retro-reflective, 15 m, PNP, Light-ON/Dark-ON, M8 4-pin connector

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E3Z-LR86 laser photoelectric sensor provides highly focused optical detection for precise positioning, small-part sorting, and high-speed material handling operations. These sensors project a concentrated laser beam to achieve accurate tracking over extended distances within automated factory floor systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Laser diode, red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance15000 mmSensing distance (min.)200 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightLaser diode, red lightLaser class1Spot size5 mmPower supply voltage12-24 VFeaturesM.S.R.Degree of protection (IP)IP67
