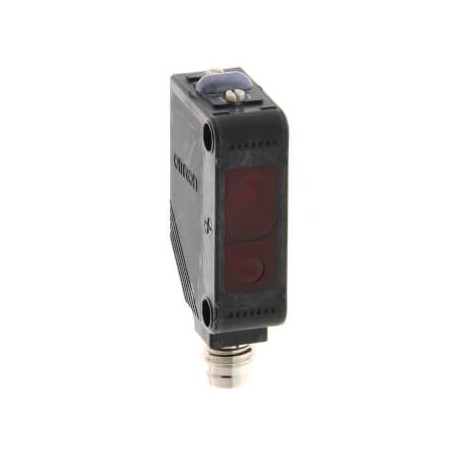

OMRON E3Z-LL88 E3Z-LL88 E3Z 7416D E3ZLL88OMS OMRON Laser-cc 3h BGS 300mm PNP M8 Fast 0.5 ms View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LL88 E3Z 7416D E3ZLL88OMS OMRON Laser-cc 3h BGS 300mm PNP M8 Fast 0.5 ms

E3Z-LL88

E3Z 7416D

E3ZLL88OMS

OMRON

1 Pcs.

Laser-cc 3h BGS 300mm PNP M8 Fast 0.5 ms Photoelectric sensor, rectangular housing, red laser class 1, background suppression, high speed version, 300 mm, PNP, Light-ON/Dark-ON, M8 4-pin conn

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3Z-LL88 is a laser-cc 3h BGS 300mm PNP M8 Fast 0.5 ms created for lightning-fast object detection and background suppression in high-speed industrial machinery. Technicians rely on these precise optical components to monitor tiny components on rapid sorting lines and assembly platforms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Laser diode, red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance300 mmSensing distance (min.)25 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightLaser diode, red lightLaser class1Spot size0.5 mmPower supply voltage12-24 VFeaturesHigh precision positioning & detectionDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
