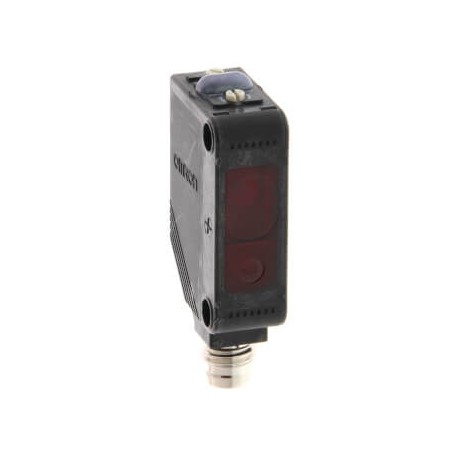

OMRON E3Z-LL68 E3Z-LL68 E3Z 7414H E3ZLL68OMS OMRON Laser-cc 3h BGS 300mm NPN M8 Fast 0.5 ms View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LL68 E3Z 7414H E3ZLL68OMS OMRON Laser-cc 3h BGS 300mm NPN M8 Fast 0.5 ms

E3Z-LL68

E3Z 7414H

E3ZLL68OMS

OMRON

1 Pcs.

Laser-cc 3h BGS 300mm NPN M8 Fast 0.5 ms Photoelectric sensor, rectangular housing, red laser class 1, background suppression, high speed version, 300 mm, NPN, Light-ON/Dark-ON, M8 4-pin conn

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E3Z-LL68 laser photoelectric sensor provides high-speed optical detection capabilities for automated sorting stations, quality control check-points, and machinery safety interlocking. By projecting a focused laser beam, it detects minor positional changes of targets with rapid response times. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Laser diode, red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance300 mmSensing distance (min.)25 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightLaser diode, red lightLaser class1Spot size0.5 mmPower supply voltage12-24 VFeaturesHigh precision positioning & detectionDegree of protection (IP)IP67
