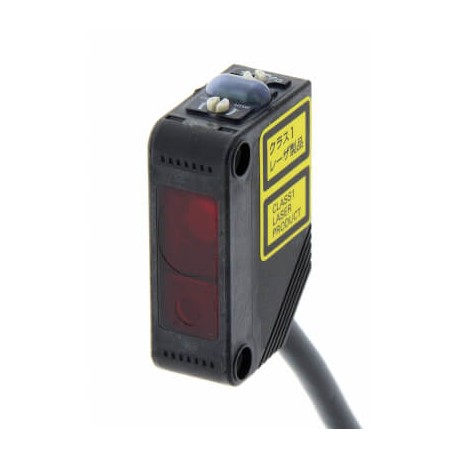

OMRON E3Z-LL61 2M E3Z-LL61 2M E3Z 7409A E3ZLL612MOMS OMRON Laser-cc 3h BGS 300mm NPN Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LL61 2M E3Z 7409A E3ZLL612MOMS OMRON Laser-cc 3h BGS 300mm NPN Cable 2m

E3Z-LL61 2M

E3Z 7409A

E3ZLL612MOMS

OMRON

1 Pcs.

Laser-cc 3h BGS 300mm NPN Cable 2m Photoelectric sensor, rectangular housing, red laser class 1, background suppression, 300 mm, NPN, Light-ON/Dark-ON, 2 m cable

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3Z-LL61 2M Laser-cc 3h BGS 300mm NPN Cable 2m functions as a precision laser-based photoelectric sensor designed to detect objects accurately while ignoring background interference in complex automated setups. Facility operators install these units where exact distance discrimination is needed, such as in robotic work cells, precision assembly stations, and automated sorting equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Laser diode, red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance300 mmSensing distance (min.)20 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightLaser diode, red lightLaser class1Spot size0.5 mmPower supply voltage12-24 VFeaturesHigh precision positioning & detectionDegree of protection (IP)IP67
