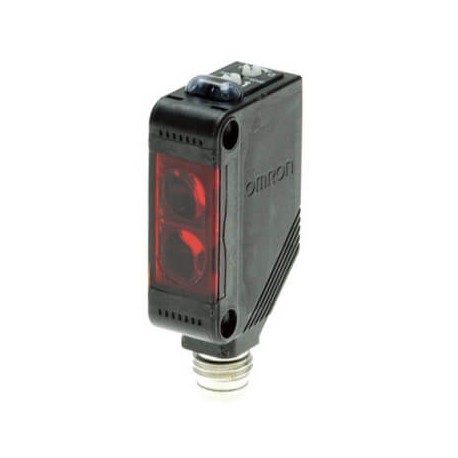

OMRON E3Z-B66 E3Z-B66 E3Z 7201C E3ZB66OMS OMRON Transparent objects cc 3h Mirror 0.5 m, NPN, M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-B66 E3Z 7201C E3ZB66OMS OMRON Transparent objects cc 3h Mirror 0.5 m, NPN, M8

E3Z-B66

E3Z 7201C

E3ZB66OMS

OMRON

1 Pcs.

Transparent objects cc 3h Mirror 0.5 m, NPN, M8 Photoelectric sensor, rectangular housing, red LED, retro-reflective, transparent object, 500 mm, NPN, Light-ON/Dark-ON, M8 4-pin connector

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron compact photoelectric sensor, part number E3Z-B66, provides accurate target sensing for automated sorting systems, packaging equipment, and industrial assembly lines where reliable optical detection is required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance500 mmSensing distance (min.)100 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightPolarity free red lightPower supply voltage12-24 VFeaturesTransparent detection, Without M.S.R.Degree of protection (IP)IP67
