> OMRON > Photoelectric sensors > E3S > E3S 3067F

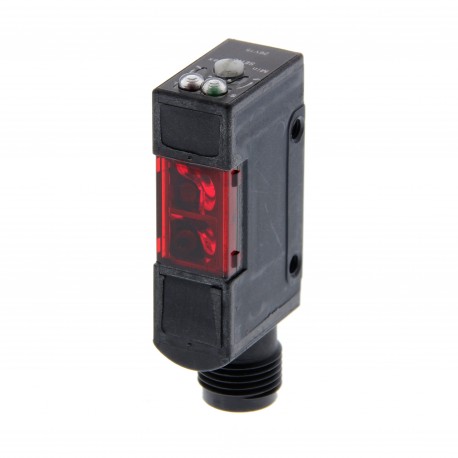

OMRON E3S-AD66 E3S-AD66 E3S 3067F E3SAD66 OMRON Plastic cc 3h Slr 20cm vertic ms. NPN M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3S-AD66 E3S 3067F E3SAD66 OMRON Plastic cc 3h Slr 20cm vertic ms. NPN M12

E3S-AD66

E3S 3067F

E3SAD66

OMRON

1 Pcs.

Plastic cc 3h Slr 20cm vertic ms. NPN M12 Plastic cc 3h SLR 20cm Vertic. NPN M12 Photoelectric sensor, diffuse, 200 mm, DC, 3-wire, NPN, vertical, M12 plug-in

Automation > Diffuse reflective photoelectric sensor
E3S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron through-beam photoelectric sensor model E3S-AD66 features a vertical plastic housing design optimized for tight industrial mounting spaces. Through-beam optical systems provide high-accuracy sensing for edge detection, parts counting, and automated sorting tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Plug-in connection
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 0
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No

More info

▲

Built-in Amplifier Photoelectric Sensor
E3S-A
Ordering Information
E3S-A General-purpose Sensors
Connections AppearanceSensing method
Sensing distance
Operating modes
Output / timer functions
Model
NPN outputPNP output
PrewiredHorizontalThrough-beam 7 m Light-ON
--- E3S-AT11E3S-AT31
Dark-ON (selectable)
With timer and self-diagnostic functions
E3S-AT21E3S-AT41
Retroreflective 0.1 to 2 m
--- E3S-AR11 E3S-AR31
(polarized)
With timer and self-diagnostic functions
E3S-AR21 E3S-AR41
Diffuse reflec-
10 cm (light
--- E3S-AD13 E3S-AD33
tive
source: infra- red)
With timer and self-diagnostic functions
E3S-AD23 E3S-AD43
20 cm--- E3S-AD11 E3S-AD31
With timer and self-diagnostic functions
E3S-AD21 E3S-AD41
70 cm (light
--- E3S-AD12 E3S-AD32
source: infra- red)
With timer and self-diagnostic functions
E3S-AD22 E3S-AD42
E3S-A
A-231


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
