> OMRON > Photoelectric sensors > E3S > E3S 3153B

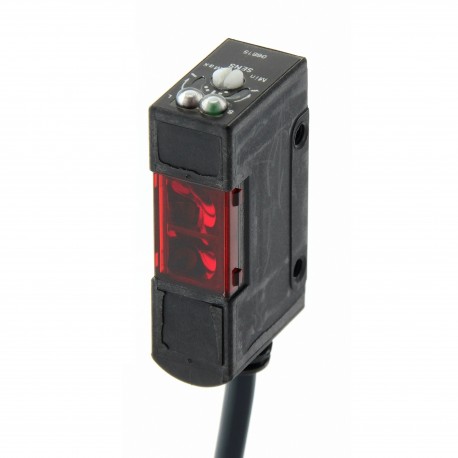

OMRON E3S-AD63 E3S-AD63 E3S 3153B E3SAD63 OMRON Plastic cc 3h Slr 10cm vertic ms. NPN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3S-AD63 E3S 3153B E3SAD63 OMRON Plastic cc 3h Slr 10cm vertic ms. NPN

E3S-AD63

E3S 3153B

E3SAD63

OMRON

1 Pcs.

Plastic cc 3h Slr 10cm vertic ms. NPN Plastic cc 3h SLR 10cm Vertic. Npn Photoelectric sensor, diffuse, 100 mm, DC, 3-wire, NPN, vertical, 2 m cable

Automation > Diffuse reflective photoelectric sensor
E3S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A plastic cuboid photoelectric sensor provides precise target detection and part verification within confined industrial automation spaces. By utilizing infrared light beams, these units accurately sense items without physical contact on automated manufacturing floors. The Omron E3S-AD63 features robust construction and reliable PNP switching capabilities for factory equipment integration. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 0
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No

More info

▲

Built-in Amplifier Photoelectric Sensor
E3S-A
Ordering Information
E3S-A General-purpose Sensors
Connections AppearanceSensing method
Sensing distance
Operating modes
Output / timer functions
Model
NPN outputPNP output
PrewiredHorizontalThrough-beam 7 m Light-ON
--- E3S-AT11E3S-AT31
Dark-ON (selectable)
With timer and self-diagnostic functions
E3S-AT21E3S-AT41
Retroreflective 0.1 to 2 m
--- E3S-AR11 E3S-AR31
(polarized)
With timer and self-diagnostic functions
E3S-AR21 E3S-AR41
Diffuse reflec-
10 cm (light
--- E3S-AD13 E3S-AD33
tive
source: infra- red)
With timer and self-diagnostic functions
E3S-AD23 E3S-AD43
20 cm--- E3S-AD11 E3S-AD31
With timer and self-diagnostic functions
E3S-AD21 E3S-AD41
70 cm (light
--- E3S-AD12 E3S-AD32
source: infra- red)
With timer and self-diagnostic functions
E3S-AD22 E3S-AD42
E3S-A
A-231


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
