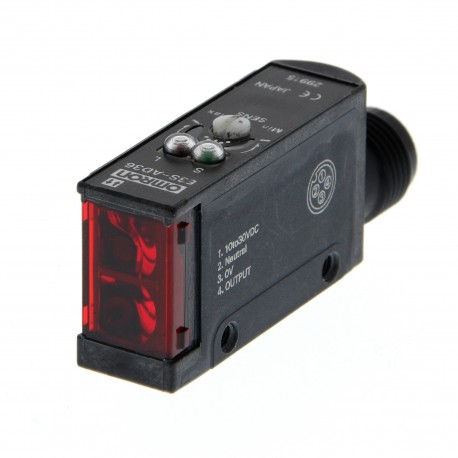

OMRON E3S-AD37 E3S-AD37 E3S 3042M E3SAD37 OMRON Plastic cc 3h Slr 70cm Horiz. PNP M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3S-AD37 E3S 3042M E3SAD37 OMRON Plastic cc 3h Slr 70cm Horiz. PNP M12

E3S-AD37

E3S 3042M

E3SAD37

OMRON

1 Pcs.

Plastic cc 3h Slr 70cm Horiz. PNP M12 Photoelectric sensor, diffuse, 700 mm, DC, 3-wire, PNP, horizontal, M12 plug-in

Automation > Diffuse reflective photoelectric sensor
E3S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3S-AD37 is a plastic cubic photoelectric sensor applied across general automation architectures for non-contact object verification. Photoelectric units project beams across targeted zones to detect interruptions or reflections, serving a vital role in industrial sorting and counting setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Plug-in connection
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 0
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No

More info

▲

Built-in Amplifier Photoelectric Sensor
E3S-A
Ordering Information
E3S-A General-purpose Sensors
Connections AppearanceSensing method
Sensing distance
Operating modes
Output / timer functions
Model
NPN outputPNP output
PrewiredHorizontalThrough-beam 7 m Light-ON
--- E3S-AT11E3S-AT31
Dark-ON (selectable)
With timer and self-diagnostic functions
E3S-AT21E3S-AT41
Retroreflective 0.1 to 2 m
--- E3S-AR11 E3S-AR31
(polarized)
With timer and self-diagnostic functions
E3S-AR21 E3S-AR41
Diffuse reflec-
10 cm (light
--- E3S-AD13 E3S-AD33
tive
source: infra- red)
With timer and self-diagnostic functions
E3S-AD23 E3S-AD43
20 cm--- E3S-AD11 E3S-AD31
With timer and self-diagnostic functions
E3S-AD21 E3S-AD41
70 cm (light
--- E3S-AD12 E3S-AD32
source: infra- red)
With timer and self-diagnostic functions
E3S-AD22 E3S-AD42
E3S-A
A-231
