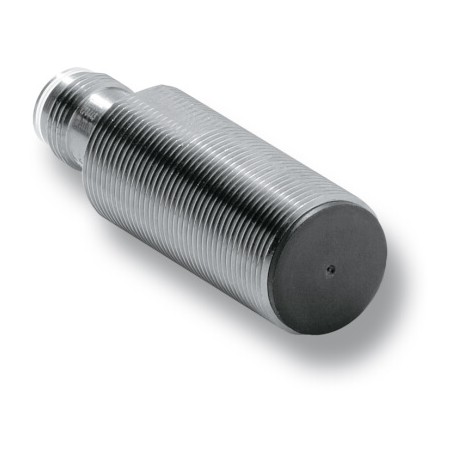

OMRON E2A3-M18KS11-WP-B1 2M E2A3-M18KS11-WP-B1 2M E2A37005M E2A3M18KS11WPB12MOMC OMRON Triple short-range 3h Enr 11mm M18 PNP NA Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A3-M18KS11-WP-B1 2M E2A37005M E2A3M18KS11WPB12MOMC OMRON Triple short-range 3h Enr 11mm M18 PNP NA Cable 2m

E2A3-M18KS11-WP-B1 2M

E2A37005M

E2A3M18KS11WPB12MOMC

OMRON

1 Pcs.

Triple short-range 3h Enr 11mm M18 PNP NA Cable 2m Triple Short Reach 3h Enr 11mm M18 PNP NA Cable 2m Proximity sensor, inductive, triple distance, brass-nickel, short body, M18, shielded, 11mm, DC, 3-wire, PNP-NO, 2m prewired

Automation > Inductive proximity switch
Proximity Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2A3-M18KS11-WP-B1 2M is an inductive proximity sensor configured for precise short-range metal detection in automated manufacturing installations. Such components play a vital role in mechanical positioning, assembly verification, and cycle monitoring on production floors.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • M8: ¢
  • NPN: E2A3-S08KS03-WP-C1 2M
  • M12: ¢
  • NPN: E2A3-M12KS06-WP-C1 2M
  • M18: ¢
  • NPN: E2A3-M18KS11-WP-C1 2M
  • M30: ¢
  • NPN: E2A3-M30KS20-WP-C1 2M
  • M8: ¢
  • NPN: E2A3-S08KS03-M1-C1
  • M12: ¢
  • NPN: E2A3-M12KS06-M1-C1
  • M18: ¢
  • NPN: E2A3-M18KS11-M1-C1
  • M30: ¢
  • NPN: E2A3-M30KS20-M1-C1

More info

▲
Features

Long (triple) distance inductive sensor in cylindrical brass housing

The E2A3 family features an optimised sensing performance to achieve triple sensing distance for flush mounting requirements.

  • Triple distance for enhanced sensor protection from mechanical damage
  • IP67 and IP69k

Ordering information

Pre-wired

(For different cable materials and lengths, special housing length or special connectors, please refer to complete datasheet.)

Size



Sensing distance

Thread length (overall length)

Output configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode: NO

Operation mode: NC

M8

¢

-

3.0 mm

27 (40) mm

PNP

E2A3-S08KS03-WP-B1 2M

E2A3-S08KS03-WP-B2 2M

NPN

E2A3-S08KS03-WP-C1 2M

E2A3-S08KS03-WP-C2 2M

M12

¢

-

6.0 mm

34 (50) mm

PNP

E2A3-M12KS06-WP-B1 2M

E2A3-M12KS06-WP-B2 2M

NPN

E2A3-M12KS06-WP-C1 2M

E2A3-M12KS06-WP-C2 2M

M18

¢

-

11.0 mm

39 (60) mm

PNP

E2A3-M18KS11-WP-B1 2M

E2A3-M18KS11-WP-B2 2M

NPN

E2A3-M18KS11-WP-C1 2M

E2A3-M18KS11-WP-C2 2M

M30

¢

-

20.0 mm

44 (65) mm

PNP

E2A3-M30KS20-WP-B1 2M

E2A3-M30KS20-WP-B2 2M

NPN

E2A3-M30KS20-WP-C1 2M

E2A3-M30KS20-WP-C2 2M

Connector types (M12)E2A3_rev01-4.png

Size



Sensing distance

Thread length (overall length)

Output configuration

Order code (for M12 connector types)

Operation mode: NO

Operation mode: NC

M8

¢

-

3.0 mm

27 (44) mm

PNP

E2A3-S08KS03-M1-B1

E2A3-S08KS03-M1-B2

NPN

E2A3-S08KS03-M1-C1

E2A3-S08KS03-M1-C2

M12

¢

-

6.0 mm

34 (49) mm

PNP

E2A3-M12KS06-M1-B1

E2A3-M12KS06-M1-B2

NPN

E2A3-M12KS06-M1-C1

E2A3-M12KS06-M1-C2

M18

¢

-

11.0 mm

39 (54) mm

PNP

E2A3-M18KS11-M1-B1

E2A3-M18KS11-M1-B2

NPN

E2A3-M18KS11-M1-C1

E2A3-M18KS11-M1-C2

M30

¢

-

20.0 mm

44 (59) mm

PNP

E2A3-M30KS20-M1-B1

E2A3-M30KS20-M1-B2

NPN

E2A3-M30KS20-M1-C1

E2A3-M30KS20-M1-C2

Specifications

Item

M8

M12

M18

M30

E2A3-S08KS03

E2A3-M12KS06-

E2A3-M18KS11

E2A3-M30KS20

Sensing distance

3 mm±10%

6 mm±10%

11 mm±10%

20 mm±10%

Response frequency

700 Hz

350 Hz

250 Hz

80 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Power supply reverse
polarity protection, surge suppressor,
short-circuit protection

Output reverse polarity protection, power supply reverse polarity protection, surge suppressor, short-circuit
protection

Ambient temperature

Operating

-25 to 70°C

Storage

Degree of protection

IP67 after IEC 60529; IP69K after DIN 40050 part 9

Material

Case

Stainless steel

Brass-nickel plated

Sensing surface

PBT
