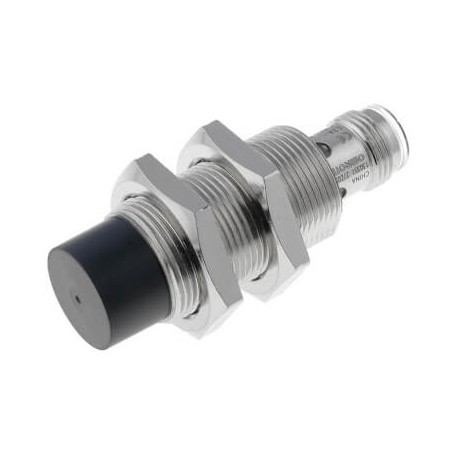

OMRON E2A-S18KN16-M1-B1 E2A-S18KN16-M1-B1 E2A 7155R E2AS18KN16M1B1 OMRON Stainless steel Long-3h NoEnr 16mm M18 PNP NA M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S18KN16-M1-B1 E2A 7155R E2AS18KN16M1B1 OMRON Stainless steel Long-3h NoEnr 16mm M18 PNP NA M12 Connector

E2A-S18KN16-M1-B1

E2A 7155R

E2AS18KN16M1B1

OMRON

1 Pcs.

Stainless steel Long-3h NoEnr 16mm M18 PNP NA M12 Connector Proximity sensor, inductive, stainless steel, short body, M18, non-shielded, 16mm, DC, 3-wire, PNP-NO, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron inductive proximity sensor model E2A-S18KN16-M1-B1 detects metal targets reliably without mechanical wear in demanding industrial automation environments. Stainless steel proximity sensors of this class are typically installed in processing machinery, automotive assembly plants, and material handling systems for rigorous position sensing tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 16 mm

More info

▲
SizeM18Mounting typeNon-flushSensing distance16 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor53 mmThread length29 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
