OMRON E2A-S12KS04-M1-B1 E2A-S12KS04-M1-B1 E2A 7368C E2AS12KS04M1B1OMS OMRON Stainless steel Short-3h Enr 4mm M12 PNP NA M12 Connector View larger

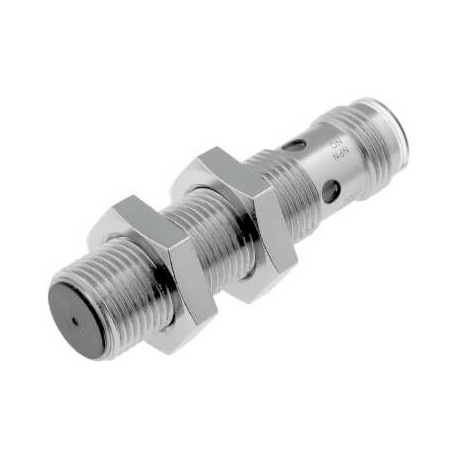

Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S12KS04-M1-B1 E2A 7368C E2AS12KS04M1B1OMS OMRON Stainless steel Short-3h Enr 4mm M12 PNP NA M12 Connector

E2A-S12KS04-M1-B1

E2A 7368C

E2AS12KS04M1B1OMS

OMRON

1 Pcs.

Stainless steel Short-3h Enr 4mm M12 PNP NA M12 Connector Proximity sensor, inductive, stainless steel, short body, M12, shielded, 4mm, DC, 3-wire, PNP-NO, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2A-S12KS04-M1-B1 is a robust inductive proximity sensor designed for dependable metal target detection in industrial automation settings. Engineers integrate these threaded metal sensors into machinery to track movement, count items, and establish precise positioning limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM12Mounting typeFlushSensing distance4 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor48 mmThread length34 mmDegree of protection (IP)IP67/IP69K
