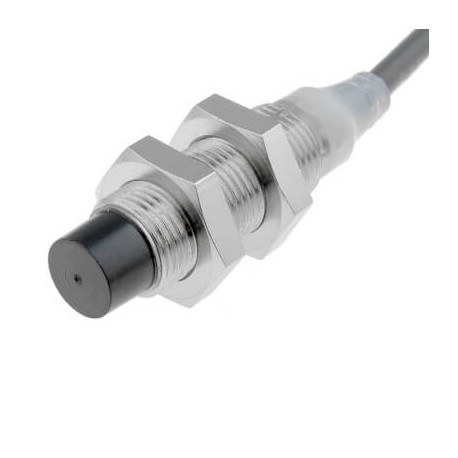

OMRON E2A-S12KN08-WP-B1 2M E2A-S12KN08-WP-B1 2M E2A 7318G E2AS12KN08WPB12MOMS OMRON Stainless steel Short-3h NoEnr 8mm M12 PNP NA Cable.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S12KN08-WP-B1 2M E2A 7318G E2AS12KN08WPB12MOMS OMRON Stainless steel Short-3h NoEnr 8mm M12 PNP NA Cable..

E2A-S12KN08-WP-B1 2M

E2A 7318G

E2AS12KN08WPB12MOMS

OMRON

1 Pcs.

Stainless steel Short-3h NoEnr 8mm M12 PNP NA Cable 2m Proximity sensor, inductive, stainless steel, short body, M12, non-shielded, 8 mm, DC, 3-wire, PNP-NO, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2A-S12KN08-WP-B1 2M inductive proximity sensor detects metallic objects without physical contact, providing reliable binary switching signals in automated industrial machinery and production lines. Non-contact sensing minimizes mechanical wear and ensures consistent feedback in high-speed manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM12Mounting typeNon-flushSensing distance8 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor50 mmThread length27 mmDegree of protection (IP)IP67/IP69K
