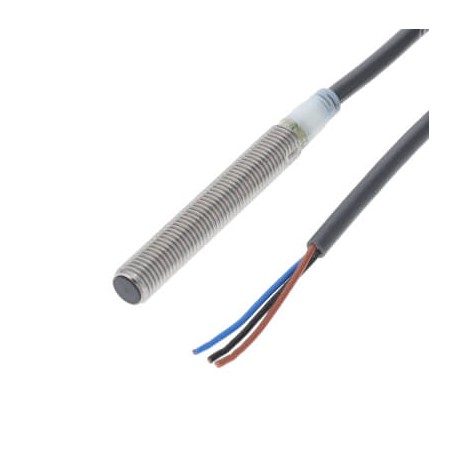

OMRON E2A-S08LS02-WP-C1 2M E2A-S08LS02-WP-C1 2M E2A 7268G E2AS08LS02WPC12MOMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NA Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LS02-WP-C1 2M E2A 7268G E2AS08LS02WPC12MOMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NA Cable 2m

E2A-S08LS02-WP-C1 2M

E2A 7268G

E2AS08LS02WPC12MOMC

OMRON

1 Pcs.

Stainless steel Long-3h Enr 2mm M8 NPN NA Cable 2m Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, NPN-NO, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2A-S08LS02-WP-C1 2M Stainless steel Long-3h Enr 2mm M8 NPN NA Cable 2m functions as a standard non-contact target detector for automated industrial processes. It helps maintain precise operational cycles by transmitting switching signals whenever metallic elements pass within range.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor62 mmThread length49 mmDegree of protection (IP)IP67/IP69K
