OMRON E2A-S08LS02-WP-B1 2M E2A-S08LS02-WP-B1 2M E2A 7207E E2AS08LS02WPB12MOMC OMRON Stainless steel Long-3h Enr 2mm M8 PNP NA Cable 2m View larger

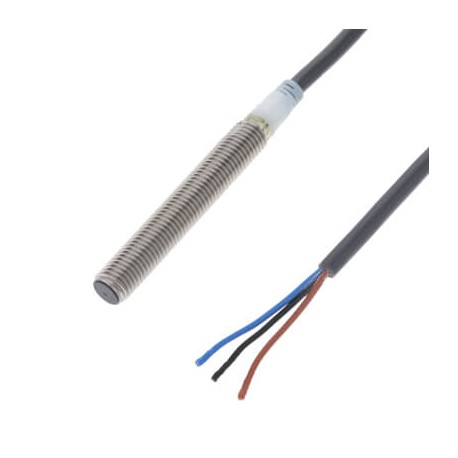

Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LS02-WP-B1 2M E2A 7207E E2AS08LS02WPB12MOMC OMRON Stainless steel Long-3h Enr 2mm M8 PNP NA Cable 2m

E2A-S08LS02-WP-B1 2M

E2A 7207E

E2AS08LS02WPB12MOMC

OMRON

1 Pcs.

Stainless steel Long-3h Enr 2mm M8 PNP NA Cable 2m Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, PNP-NO, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An E2A-S08LS02-WP-B1 2M Omron inductive proximity sensor detects metallic components without physical contact, ensuring reliable operation in high-speed manufacturing environments. Technicians utilize these devices across material handling equipment, packaging lines, and assembly machinery for accurate position control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Length of sensor (EF007334): 62 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor62 mmThread length49 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
