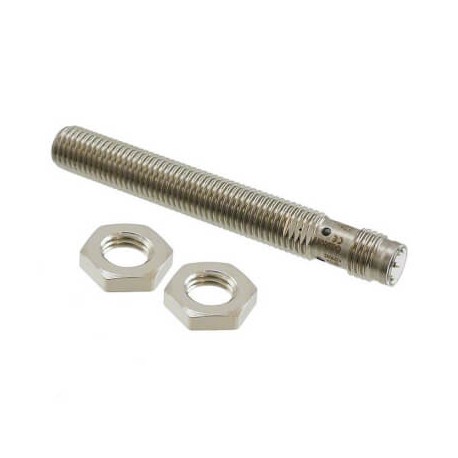

OMRON E2A-S08LS02-M5-B2 E2A-S08LS02-M5-B2 E2A 7262H E2AS08LS02M5B2OMC OMRON Stainless steel Long-3h Enr 2mm M8 PNP NC Connector M8 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LS02-M5-B2 E2A 7262H E2AS08LS02M5B2OMC OMRON Stainless steel Long-3h Enr 2mm M8 PNP NC Connector M8 3..

E2A-S08LS02-M5-B2

E2A 7262H

E2AS08LS02M5B2OMC

OMRON

1 Pcs.

Stainless steel Long-3h Enr 2mm M8 PNP NC Connector M8 3pines Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, PNP-NC, M8 connector (3 pin)

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metal-housed Omron E2A-S08LS02-M5-B2 inductive proximity sensor provides accurate position sensing and target detection in automated industrial processes. Engineers rely on these sensors to monitor mechanical movement, cycle counts, and component placement safely and efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNCConnection methodConnector M8 - 3 pinMaterial housingStainless steelCable specifications-Overall length of sensor61 mmThread length49 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
