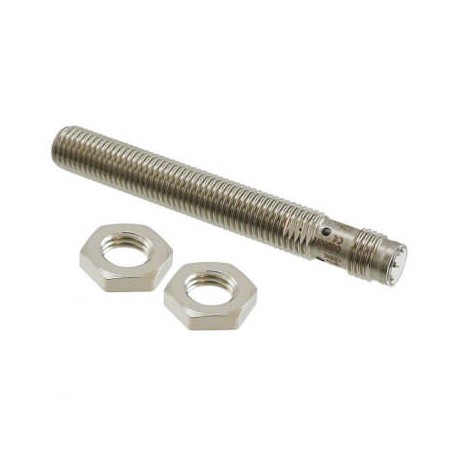

OMRON E2A-S08LS02-M3-B1 E2A-S08LS02-M3-B1 E2A 7340C E2AS08LS02M3B1OMS OMRON Stainless steel Long-3h Enr 2mm M8 PNP NA M8 Connector 4.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LS02-M3-B1 E2A 7340C E2AS08LS02M3B1OMS OMRON Stainless steel Long-3h Enr 2mm M8 PNP NA M8 Connector 4..

E2A-S08LS02-M3-B1

E2A 7340C

E2AS08LS02M3B1OMS

OMRON

1 Pcs.

Stainless steel Long-3h Enr 2mm M8 PNP NA M8 Connector 4pines Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, PNP-NO, M8 connector (4 pin)

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Sensing metallic targets via electromagnetic fields, the Omron E2A-S08LS02-M3-B1 Stainless steel Long-3h Enr 2mm M8 PNP NA M8 Connector 4. belongs to a standard class of automation components used for precise position feedback and machine cycle control. These units integrate seamlessly into control architectures to monitor moving parts on assembly lines.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Length of sensor (EF007334): 61 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNOConnection methodConnector M8 - 4 pinMaterial housingStainless steelCable specifications-Overall length of sensor61 mmThread length49 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
