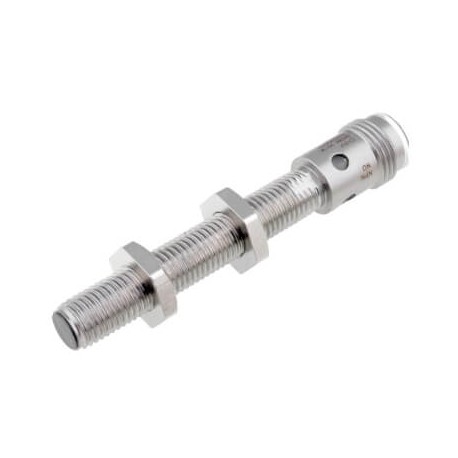

OMRON E2A-S08LS02-M1-C1 E2A-S08LS02-M1-C1 E2A 7205R E2AS08LS02M1C1OMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NA M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LS02-M1-C1 E2A 7205R E2AS08LS02M1C1OMC OMRON Stainless steel Long-3h Enr 2mm M8 NPN NA M12 Connector

E2A-S08LS02-M1-C1

E2A 7205R

E2AS08LS02M1C1OMC

OMRON

1 Pcs.

Stainless steel Long-3h Enr 2mm M8 NPN NA M12 Connector Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, NPN-NO, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron stainless steel proximity sensor, part number E2A-S08LS02-M1-C1, detects metallic targets without physical contact in automated industrial environments. Cylindrical inductive sensors of this type are widely deployed in assembly lines and machinery control systems for precise position feedback, limit sensing, and counting operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNOConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor65 mmThread length49 mmDegree of protection (IP)IP67/IP69K
