OMRON E2A-S08LS02-M1-B2 E2A-S08LS02-M1-B2 E2A 7260A E2AS08LS02M1B2OMC OMRON Stainless steel Long-3h Enr 2mm M8 PNP NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LS02-M1-B2 E2A 7260A E2AS08LS02M1B2OMC OMRON Stainless steel Long-3h Enr 2mm M8 PNP NC Connector M12

E2A-S08LS02-M1-B2

E2A 7260A

E2AS08LS02M1B2OMC

OMRON

1 Pcs.

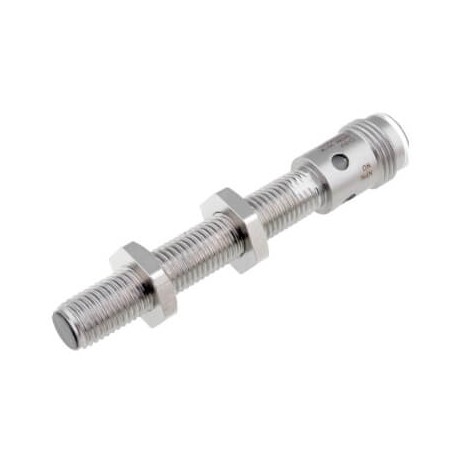

Stainless steel Long-3h Enr 2mm M8 PNP NC Connector M12 Proximity sensor, inductive, stainless steel, long body, M8, shielded, 2mm, DC, 3-wire, PNP-NC, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2A-S08LS02-M1-B2 functions as an inductive proximity sensor implemented in automated systems to sense metallic components without mechanical contact. Facilities rely on these devices for consistent position tracking, cycle counting, and limit detection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNCConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor65 mmThread length49 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
