View larger
Images are for illustrative purposes only. Please refer to data sheet for details

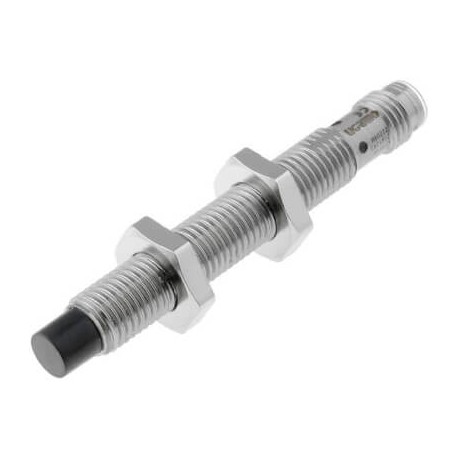

E2A-S08LN04-M5-B2 E2A 7250D E2AS08LN04M5B2OMC OMRON Stainless steel Long-3h NoEnr 4mm M8 PNP NC Connector M8..
E2A-S08LN04-M5-B2
E2A 7250D
E2AS08LN04M5B2OMC
OMRON
1 Pcs.
Stainless steel Long-3h NoEnr 4mm M8 PNP NC Connector M8 3pines
Proximity sensor, inductive, stainless steel, long body, M8, non-shielded, 4mm, DC, 3-wire, PNP-NC, M8 connector(3 pin)
Automation > Inductive proximity switch
E2A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | M8 |
| Mounting type | Non-flush |
| Sensing distance | 4 mm |
| Output type | PNP |
| Operation mode | NC |
| Connection method | Connector M8 - 3 pin |
| Material housing | Stainless steel |
| Cable specifications | - |
| Overall length | 61 mm |
| Thread length | 43 mm |
| Degree of protection (IP) | IP67/IP69K |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Mechanical mounting condition for sensor (EF004041) | Not flat |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Breaker contact |
| Type of electric connection (EF003961) | Connector M8 |
| Type of interface (EF006977) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Housing material (EF001596) | Metal |
| Type of switching output (EF003962) | PNP |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | Yes |
| With monitoring function downstream switching devices (EF004052) | No |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Diameter sensor (EF007111) | 8 mm |
| Switching distance (EF003647) | 4 mm |
| Length of sensor (EF007334) | 61 mm |
| Switching frequency (EF003587) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 12 V |
