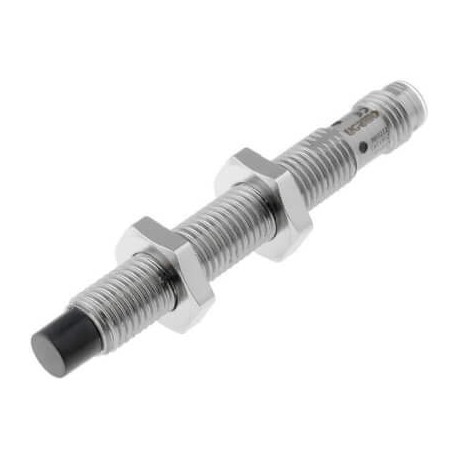

OMRON E2A-S08LN04-M5-B1 E2A-S08LN04-M5-B1 E2A 7249M E2AS08LN04M5B1OMC OMRON Stainless steel Long-3h NoEnr 4mm M8 PNP NA Connector M8.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08LN04-M5-B1 E2A 7249M E2AS08LN04M5B1OMC OMRON Stainless steel Long-3h NoEnr 4mm M8 PNP NA Connector M8..

E2A-S08LN04-M5-B1

E2A 7249M

E2AS08LN04M5B1OMC

OMRON

1 Pcs.

Stainless steel Long-3h NoEnr 4mm M8 PNP NA Connector M8 3pines Proximity sensor, inductive, stainless steel, long body, M8, non-shielded, 4mm, DC, 3-wire, PNP-NO, M8 connector(3 pin)

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron proximity sensor (part number E2A-S08LN04-M5-B1) is an inductive detection device designed to identify metallic targets within automated manufacturing and logistics environments. These sensors provide dependable position feedback and part verification, helping to optimize cycle times across various industrial applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm
  • Length of sensor (EF007334): 61 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typePNPOperation modeNOConnection methodConnector M8 - 3 pinMaterial housingStainless steelCable specifications-Overall length of sensor61 mmThread length43 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
