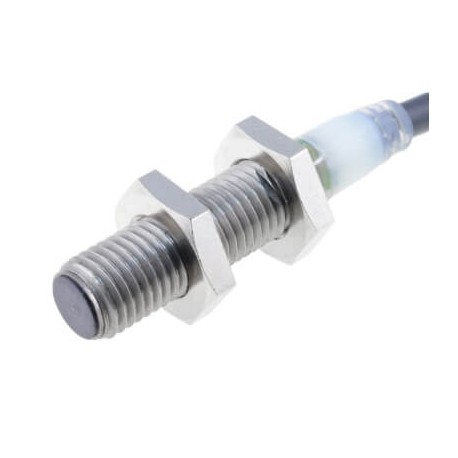

OMRON E2A-S08KS02-WP-C1 2M E2A-S08KS02-WP-C1 2M E2A 7201F E2AS08KS02WPC12MOMC OMRON Stainless steel Short-3h Enr 2mm M8 NPN NA Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KS02-WP-C1 2M E2A 7201F E2AS08KS02WPC12MOMC OMRON Stainless steel Short-3h Enr 2mm M8 NPN NA Cable 2m

E2A-S08KS02-WP-C1 2M

E2A 7201F

E2AS08KS02WPC12MOMC

OMRON

1 Pcs.

Stainless steel Short-3h Enr 2mm M8 NPN NA Cable 2m Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2mm, DC, 3-wire, NPN-NO, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2A-S08KS02-WP-C1 2M is a proximity switch designed to detect metal targets reliably within confined spaces on high-speed industrial machinery. Inductive sensors are commonly integrated into automated control loops to monitor component movement and limits.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor40 mmThread length27 mmDegree of protection (IP)IP67/IP69K
