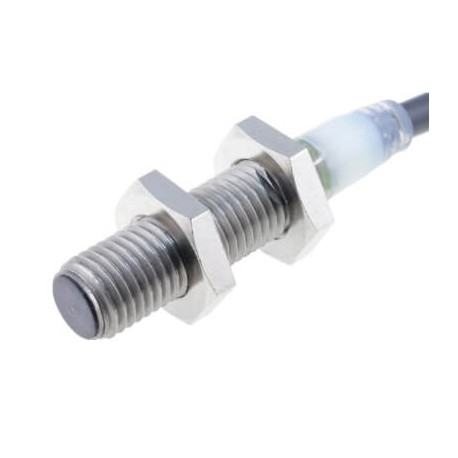

OMRON E2A-S08KS02-WP-B2 2M E2A-S08KS02-WP-B2 2M E2A 7241E E2AS08KS02WPB22MOMC OMRON Stainless steel Short-3h Enr 2mm M8 PNP NC Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KS02-WP-B2 2M E2A 7241E E2AS08KS02WPB22MOMC OMRON Stainless steel Short-3h Enr 2mm M8 PNP NC Cable 2m

E2A-S08KS02-WP-B2 2M

E2A 7241E

E2AS08KS02WPB22MOMC

OMRON

1 Pcs.

Stainless steel Short-3h Enr 2mm M8 PNP NC Cable 2m Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2mm, DC, 3-wire, PNP-NC, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Omron E2A-S08KS02-WP-B2 2M proximity sensor, inductive provides non-contact position sensing of metallic parts in high-speed industrial assembly lines. Engineers rely on these components to track linear motion, count items, and establish travel limits in automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cylinder, screw-thread
  • Mechanical mounting condition for sensor: Concise
  • Performance level according to EN ISO 13849-1: Level a
  • Type of actuation: Metallic Target
  • Type of switch function: Breaker contact
  • Type of electric connection: Cable
  • Housing material: Metal
  • Type of switching output: PNP
  • Cascadable: Yes
  • Compression-resistant: No
  • Suitable for safety functions: No
  • Number of protected contact energized outputs: 0
  • Number of protected semiconductor outputs: 0
  • Diameter sensor: 8 mm
  • Switching distance: 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor40 mmThread length27 mmDegree of protection (IP)IP67/IP69K
