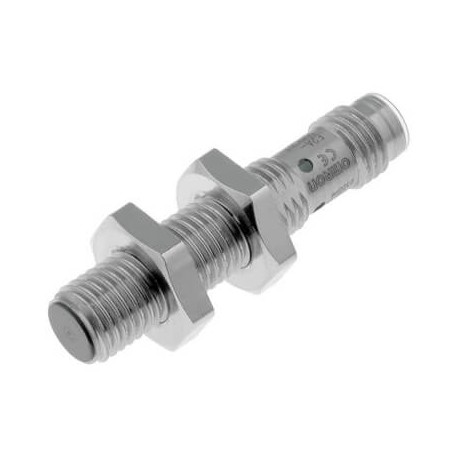

OMRON E2A-S08KS02-M5-C1 E2A-S08KS02-M5-C1 E2A 7200H E2AS08KS02M5C1OMC OMRON Stainless steel Short-3h Enr 2mm M8 NPN NA Connector M8 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KS02-M5-C1 E2A 7200H E2AS08KS02M5C1OMC OMRON Stainless steel Short-3h Enr 2mm M8 NPN NA Connector M8 ..

E2A-S08KS02-M5-C1

E2A 7200H

E2AS08KS02M5C1OMC

OMRON

1 Pcs.

Stainless steel Short-3h Enr 2mm M8 NPN NA Connector M8 3pines Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2mm, DC, 3-wire, NPN-NO, M8 connector (3 pin)

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Stainless steel Short-3h Enr proximity sensor delivers reliable non-contact detection of metal parts within demanding manufacturing and processing environments. These sensors help maintain synchronized operation across automated assembly stations and mechanical handling units.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typeNPNOperation modeNOConnection methodConnector M8 - 3 pinMaterial housingStainless steelCable specifications-Overall length of sensor39 mmThread length27 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
