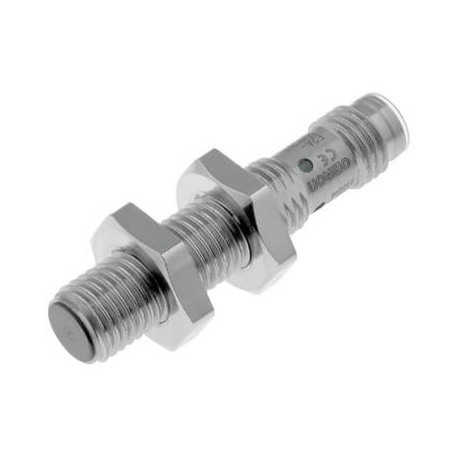

OMRON E2A-S08KS02-M5-B1 E2A-S08KS02-M5-B1 E2A 7236R E2AS08KS02M5B1OMC OMRON Stainless steel Short-3h Enr 2mm M8 PNP NA Connector M8 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KS02-M5-B1 E2A 7236R E2AS08KS02M5B1OMC OMRON Stainless steel Short-3h Enr 2mm M8 PNP NA Connector M8 ..

E2A-S08KS02-M5-B1

E2A 7236R

E2AS08KS02M5B1OMC

OMRON

1 Pcs.

Stainless steel Short-3h Enr 2mm M8 PNP NA Connector M8 3pines Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2mm, DC, 3-wire, PNP-NO, M8 connector (3 pin)

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2A-S08KS02-M5-B1 proximity sensor, inductive senses metal targets without physical contact, typically deployed in automated assembly lines for precise part positioning. Such devices feed accurate digital states back to programmable logic controllers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cylinder, screw-thread
  • Mechanical mounting condition for sensor: Concise
  • Type of actuation: Metallic Target
  • Type of switch function: Normally open contact
  • Type of electric connection: Connector M8
  • Housing material: Metal
  • Type of switching output: PNP
  • Cascadable: Yes
  • Compression-resistant: No
  • Suitable for safety functions: No
  • Number of protected contact energized outputs: 0
  • Number of protected semiconductor outputs: 0
  • Diameter sensor: 8 mm
  • Switching distance: 2 mm
  • Length of sensor: 39 mm

More info

▲
SizeM8Mounting typeFlushSensing distance2 mmOutput typePNPOperation modeNOConnection methodConnector M8 - 3 pinMaterial housingStainless steelCable specifications-Overall length of sensor39 mmThread length27 mmDegree of protection (IP)IP67/IP69K
