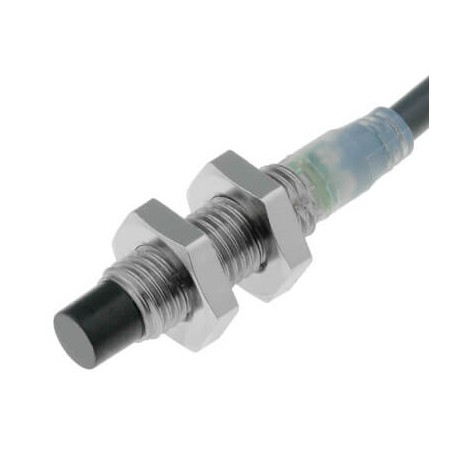

OMRON E2A-S08KN04-WP-C1 2M E2A-S08KN04-WP-C1 2M E2A 7229F E2AS08KN04WPC12MOMC OMRON Stainless steel Short-3h NoEnr 4mm M8 NPN NA Cable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KN04-WP-C1 2M E2A 7229F E2AS08KN04WPC12MOMC OMRON Stainless steel Short-3h NoEnr 4mm M8 NPN NA Cable ..

E2A-S08KN04-WP-C1 2M

E2A 7229F

E2AS08KN04WPC12MOMC

OMRON

1 Pcs.

Stainless steel Short-3h NoEnr 4mm M8 NPN NA Cable 2m Proximity sensor, inductive, stainless steel, short body, M8, non-shielded, 4mm, DC, 3-wire, NPN-NO, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2A-S08KN04-WP-C1 2M stainless steel inductive proximity sensor is engineered for precise target detection in wet or corrosive factory environments, ensuring consistent performance in automated assembly and material handling systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor40 mmThread length21 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
