OMRON E2A-S08KN04-WP-B1 2M E2A-S08KN04-WP-B1 2M E2A 7198B E2AS08KN04WPB12MOMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA Cable .. View larger

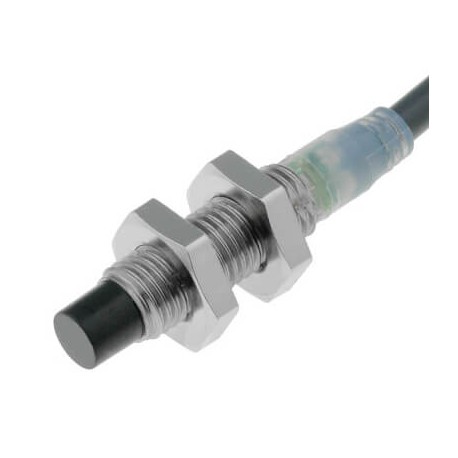

Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KN04-WP-B1 2M E2A 7198B E2AS08KN04WPB12MOMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA Cable ..

E2A-S08KN04-WP-B1 2M

E2A 7198B

E2AS08KN04WPB12MOMC

OMRON

1 Pcs.

Stainless steel Short-3h NoEnr 4mm M8 PNP NA Cable 2m Proximity sensor, inductive, stainless steel, short body, M8, non-shielded, 4mm, DC, 3-wire, PNP-NO, 2m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive proximity sensor, model E2A-S08KN04-WP-B1 2M, detects ferrous and non-ferrous metal items in high-speed industrial environments. Such sensors provide dependable feedback for positioning, counting, and motion control routines in automated cells. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm
  • Length of sensor (EF007334): 40 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor40 mmThread length21 mmDegree of protection (IP)IP67/IP69K
