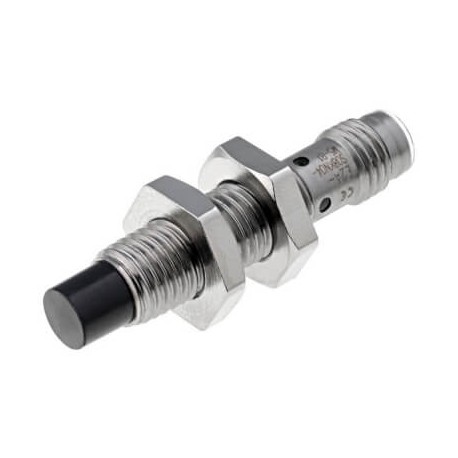

OMRON E2A-S08KN04-M5-C1 E2A-S08KN04-M5-C1 E2A 7224E E2AS08KN04M5C1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 NPN NA Connector M.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KN04-M5-C1 E2A 7224E E2AS08KN04M5C1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 NPN NA Connector M..

E2A-S08KN04-M5-C1

E2A 7224E

E2AS08KN04M5C1OMC

OMRON

1 Pcs.

Stainless steel Short-3h NoEnr 4mm M8 NPN NA Connector M8 3pines Proximity sensor, inductive, stainless steel, short body, M8, non-shielded, 4mm, DC, 3-wire, NPN-NO, M8 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cylindrical inductive proximity switch, the Omron E2A-S08KN04-M5-C1, detects the presence of metallic objects within automated equipment. These sensors operate by generating an electromagnetic field, making them ideal for high-speed counting, positioning, and limit-sensing tasks in manufacturing environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M8
  • Mounting type: Non-flush
  • Sensing distance: 4 mm
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M8 - 3 pin
  • Material housing: Stainless steel
  • Overall length: 39 mm
  • Thread length: 21 mm
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8

More info

▲

Specifications

SizeM8
Mounting typeNon-flush
Sensing distance4 mm
Output typeNPN
Operation modeNO
Connection methodConnector M8 - 3 pin
Material housingStainless steel
Cable specifications-
Overall length39 mm
Thread length21 mm
