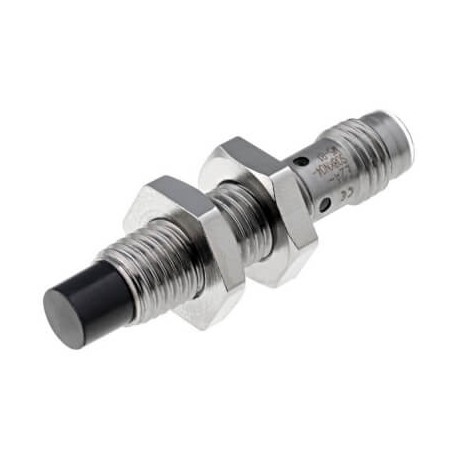

OMRON E2A-S08KN04-M5-B1 E2A-S08KN04-M5-B1 E2A 7197D E2AS08KN04M5B1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA Connector M.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KN04-M5-B1 E2A 7197D E2AS08KN04M5B1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA Connector M..

E2A-S08KN04-M5-B1

E2A 7197D

E2AS08KN04M5B1OMC

OMRON

1 Pcs.

Stainless steel Short-3h NoEnr 4mm M8 PNP NA Connector M8 3pines Proximity sensor, inductive, stainless steel, short body, M8, non-shielded, 4mm, DC, 3-wire, PNP-NO, M8 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A stainless steel inductive proximity sensor, the Omron E2A-S08KN04-M5-B1 E2A 7197D E2AS08KN04M5B1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA Connector M.. provides non-contact detection of metal targets within automated equipment and motion control systems. Engineers deploy these devices to track positioning, monitor rotational speed, and establish operational limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm
  • Length of sensor (EF007334): 39 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typePNPOperation modeNOConnection methodConnector M8 - 3 pinMaterial housingStainless steelCable specifications-Overall length of sensor39 mmThread length21 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
