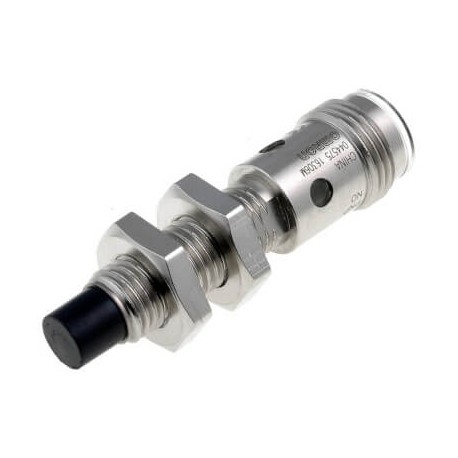

OMRON E2A-S08KN04-M1-B1 E2A-S08KN04-M1-B1 E2A 7220B E2AS08KN04M1B1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA M12 Connect.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KN04-M1-B1 E2A 7220B E2AS08KN04M1B1OMC OMRON Stainless steel Short-3h NoEnr 4mm M8 PNP NA M12 Connect..

E2A-S08KN04-M1-B1

E2A 7220B

E2AS08KN04M1B1OMC

OMRON

1 Pcs.

Stainless steel Short-3h NoEnr 4mm M8 PNP NA M12 Connector Proximity sensor, inductive, stainless steel, short body, M8, non-shielded, 4mm, DC, 3-wire, PNP-NO, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2A-S08KN04-M1-B1 is a cylindrical inductive proximity sensor built for precision position sensing in industrial settings. Factory engineers integrate similar devices to monitor moving machine parts, register part counts, and ensure proper alignment during automated processing tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm
  • Length of sensor (EF007334): 43 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor43 mmThread length21 mmDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
