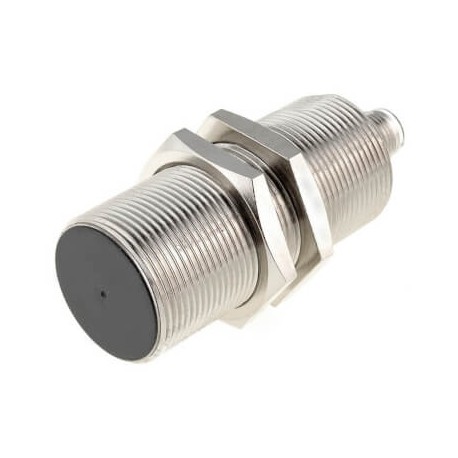

OMRON E2A-M30LS15-M1-B3 E2A-M30LS15-M1-B3 244377 E2AM30LS15M1B3OMS OMRON Long 4h Enr 15mm M30 PNP NO+NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M30LS15-M1-B3 244377 E2AM30LS15M1B3OMS OMRON Long 4h Enr 15mm M30 PNP NO+NC Connector M12

E2A-M30LS15-M1-B3

244377

E2AM30LS15M1B3OMS

OMRON

1 Pcs.

Long 4h Enr 15mm M30 PNP NO+NC Connector M12 Proximity sensor, inductive, brass-nickel, long body, M30, shielded, 15mm, DC, 4-wire, PNP-Antivalent (NO+NC), M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron E2A-M30LS15-M1-B3 inductive proximity sensor is designed for non-contact object detection in industrial automation and assembly environments. Devices of this type are widely utilized across manufacturing lines to monitor positioning, count components, and detect the presence of metal parts without mechanical wear. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Flush
  • Sensing distance: 15 mm
  • Output type: PNP
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 80 mm
  • Thread length: 66 mm

More info

▲

Specifications

SizeM30
Mounting typeFlush
Sensing distance15 mm
Output typePNP
Operation modeNO + NC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length80 mm
Thread length66 mm

Accessories

XS5F-D421-D80-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 2 m
XS5F-D421-D80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5F-D421-G80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 5 m
XS5F-D421-G80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
XS5F-D421-J80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 10 m
XS5F-D421-J80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 10 m
XS5W-D421-C81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 1 m
XS5W-D421-C81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 1 m
XS5W-D421-D81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 2 m
XS5W-D421-D81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5W-D421-G81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 5 m
XS5W-D421-G81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
