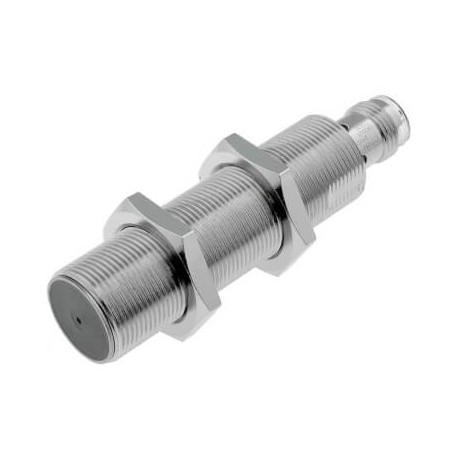

OMRON E2A-M18LS08-M1-B3 E2A-M18LS08-M1-B3 244375 E2AM18LS08M1B3OMS OMRON Long 4h Enr 8mm M18 PNP NO+NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M18LS08-M1-B3 244375 E2AM18LS08M1B3OMS OMRON Long 4h Enr 8mm M18 PNP NO+NC Connector M12

E2A-M18LS08-M1-B3

244375

E2AM18LS08M1B3OMS

OMRON

1 Pcs.

Long 4h Enr 8mm M18 PNP NO+NC Connector M12 Proximity sensor, inductive, brass-nickel, long body, M18, shielded, 8mm, DC, 4-wire, PNP-Antivalent (NO+NC), M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2A-M18LS08-M1-B3 is a flush-mounted inductive proximity sensor designed to monitor metallic objects accurately within high-volume manufacturing equipment. By utilizing electromagnetic fields, it detects target displacement without physical friction, offering long-term reliability in automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 8 mm
  • Output type: PNP
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 75 mm
  • Thread length: 61 mm

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance8 mm
Output typePNP
Operation modeNO + NC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length75 mm
Thread length61 mm

Accessories

XS5F-D421-D80-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 2 m
XS5F-D421-D80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5F-D421-G80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 5 m
XS5F-D421-G80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
XS5F-D421-J80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 10 m
XS5F-D421-J80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 10 m
XS5W-D421-C81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 1 m
XS5W-D421-C81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 1 m
XS5W-D421-D81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 2 m
XS5W-D421-D81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5W-D421-G81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 5 m
XS5W-D421-G81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
