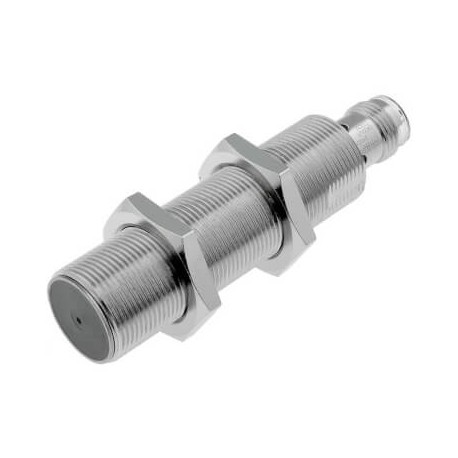

OMRON E2A-M18LS08-M1-B1 E2A-M18LS08-M1-B1 104288 E2AM18LS08M1B1 OMRON Long-3h Enr 8mm M18 PNP NA M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M18LS08-M1-B1 104288 E2AM18LS08M1B1 OMRON Long-3h Enr 8mm M18 PNP NA M12 Connector

E2A-M18LS08-M1-B1

104288

E2AM18LS08M1B1

OMRON

1 Pcs.

Long-3h Enr 8mm M18 PNP NA M12 Connector Length 3h Enr 8mm M18 PNP NA Connector M12 Proximity sensor, inductive, brass-nickel, long body, M18, shielded, 8mm, DC, 3-wire, PNP-NO, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An E2A-M18LS08-M1-B1 Omron inductive proximity sensor identifies metal targets in industrial automation tasks. Engineers integrate these components into material handling machinery, packaging equipment, and assembly cells to monitor movement, detect limits, and ensure synchronized operations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 8 mm
  • Output type: PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 75 mm
  • Thread length: 61 mm

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance8 mm
Output typePNP
Operation modeNO
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length75 mm
Thread length61 mm
