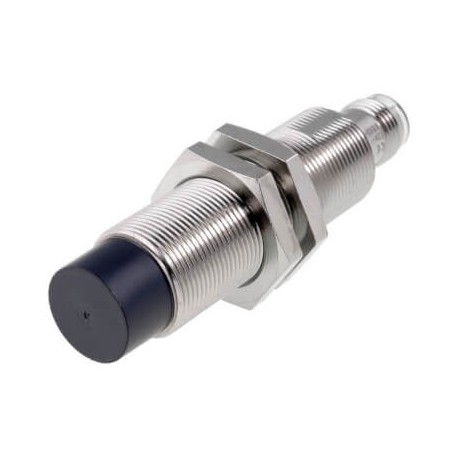

OMRON E2A-M18LN16-M1-B2 E2A-M18LN16-M1-B2 144580 E2AM18LN16M1B2 OMRON Long-3h NoEnr 16mm M18 PNP NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M18LN16-M1-B2 144580 E2AM18LN16M1B2 OMRON Long-3h NoEnr 16mm M18 PNP NC Connector M12

E2A-M18LN16-M1-B2

144580

E2AM18LN16M1B2

OMRON

1 Pcs.

Long-3h NoEnr 16mm M18 PNP NC Connector M12 Proximity sensor, inductive, brass-nickel, long body, M18, non-shielded, 16mm, DC, 3-wire, PNP-NC, M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Acting as a reliable non-contact detection device, the Omron E2A-M18LN16-M1-B2 inductive proximity sensor identifies metal targets in automated assembly and industrial material handling applications. These units help monitor system status, track passing parts, and trigger sequential automation tasks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 16 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 75 mm
  • Thread length: 51 mm

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance16 mm
Output typePNP
Operation modeNC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length75 mm
Thread length51 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
