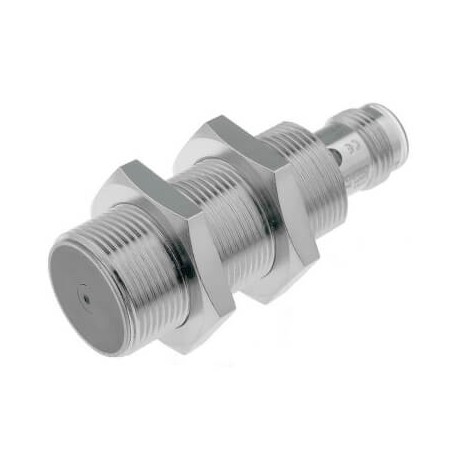

OMRON E2A-M18KS08-M1-B3 E2A-M18KS08-M1-B3 242078 E2AM18KS08M1B3OMS OMRON Short 4h Enr 8mm M18 PNP NO+NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M18KS08-M1-B3 242078 E2AM18KS08M1B3OMS OMRON Short 4h Enr 8mm M18 PNP NO+NC Connector M12

E2A-M18KS08-M1-B3

242078

E2AM18KS08M1B3OMS

OMRON

1 Pcs.

Short 4h Enr 8mm M18 PNP NO+NC Connector M12 Short 4h Enr 8mm M18 PNP NA+NC M12 Connector Proximity sensor, inductive, brass-nickel, short body, M18, shielded, 8mm, DC, 4-wire, PNP-Antivalent (NO+NC), M12 connector

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive proximity sensor provides non-contact target detection for industrial machinery, assembly lines, and motion control systems. It monitors moving parts, registers passing components, and helps regulate automated process sequences.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 8 mm
  • Output type: PNP
  • Operation mode: NO + NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 53 mm
  • Thread length: 39 mm

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance8 mm
Output typePNP
Operation modeNO + NC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length53 mm
Thread length39 mm

Accessories

XS5F-D421-D80-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 2 m
XS5F-D421-D80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5F-D421-G80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 5 m
XS5F-D421-G80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
XS5F-D421-J80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 10 m
XS5F-D421-J80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 10 m
XS5W-D421-C81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 1 m
XS5W-D421-C81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 1 m
XS5W-D421-D81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 2 m
XS5W-D421-D81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5W-D421-G81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 5 m
XS5W-D421-G81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
